BAV20W
BAV20W is Switching Diodes manufactured by Kexin Semiconductor.
- Part of the BAV19W comparator family.
- Part of the BAV19W comparator family.

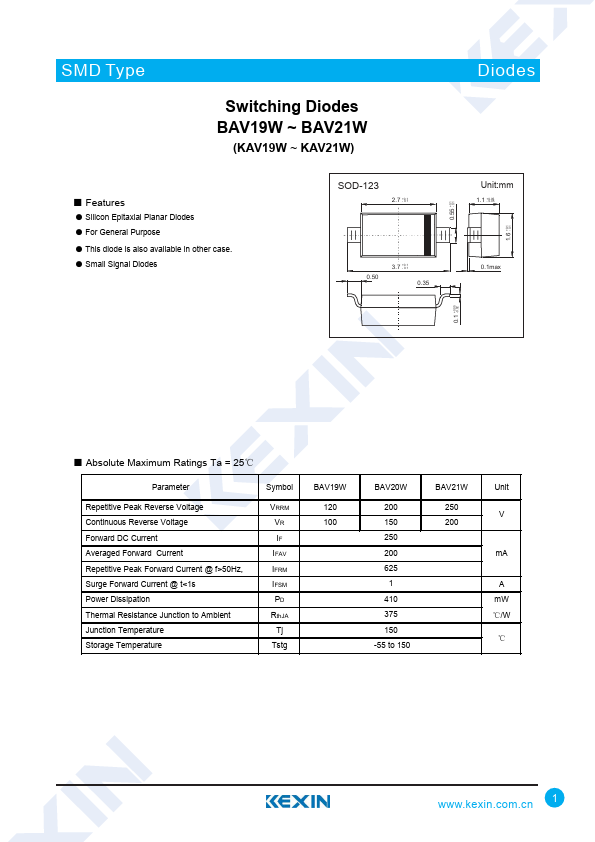

Features
- Silicon Epitaxial Planar Diodes
- For General Purpose
- This diode is also available in other case.
- Small Signal Diodes
SOD-123
2.7 +0.1
- 0.1
3.7 +0.1
- 0.1 0.35
+0.1 0.55
- 0.1
+0.1 1.6
- 0.1
Diodes
Unit:mm
1.1 +0.05
- 0.05 0.1max
+0.05 0.1 -0.02
- Absolute Maximum Ratings Ta = 25℃
Parameter
Repetitive Peak Reverse Voltage Continuous Reverse Voltage Forward DC Current Averaged Forward Current Repetitive Peak Forward Current @ f>50Hz, Surge Forward Current @ t<1s Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature
Symbol
VRRM VR IF IFAV IFRM IFSM PD Rth JA Tj Tstg
BAV19W
120 100
200 150 250 200 625
1 410 375 150 -55 to 150
BAV21W
250 200
Unit V m A
A m W ℃/W ℃
.kexin..cn 1
SMD Type
Diodes
Switching Diodes BAV19W ~ BAV21W
(KAV19W ~ KAV21W)

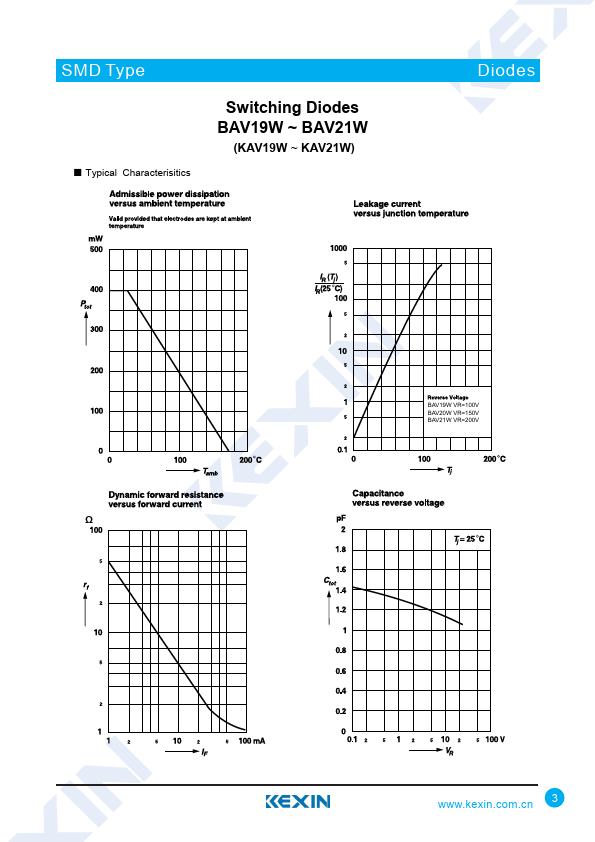

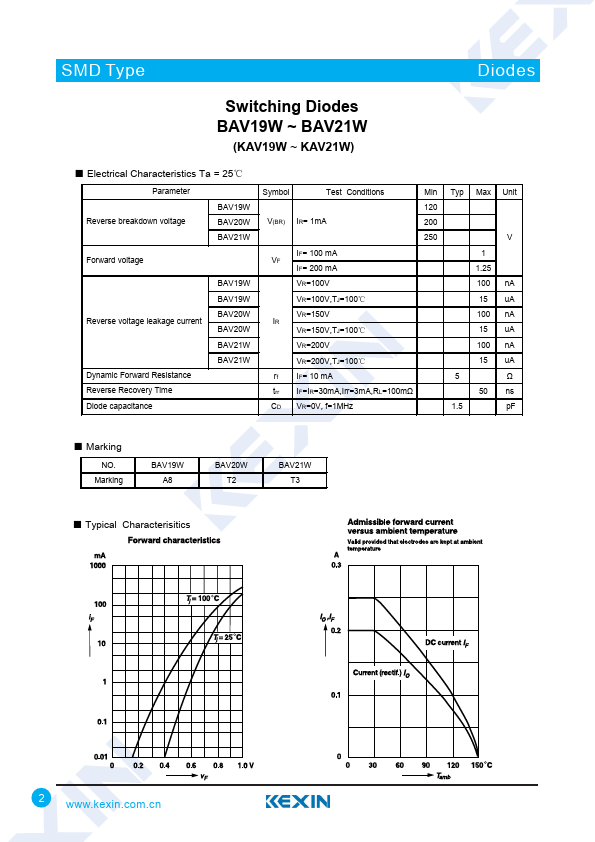

- Electrical Characteristics Ta = 25℃
Parameter Reverse breakdown...
