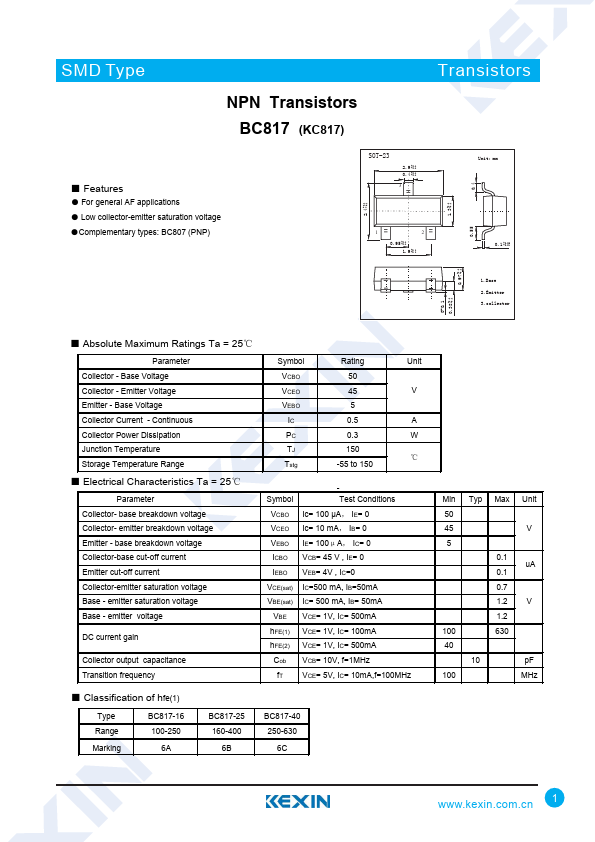

BC817
BC817 is NPN Transistors manufactured by Kexin Semiconductor.
SMD Type
Transistors
NPN Transistors BC817 (KC817)
- Features
- For general AF applications
- Low collector-emitter saturation voltage
- plementary types: BC807 (PNP)
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1 +0.05
-0.01
+0.1 0.97 -0.1
1.Base 2.Emitter 3.collector
0-0.1 +0.1 0.38
-0.1
-...
