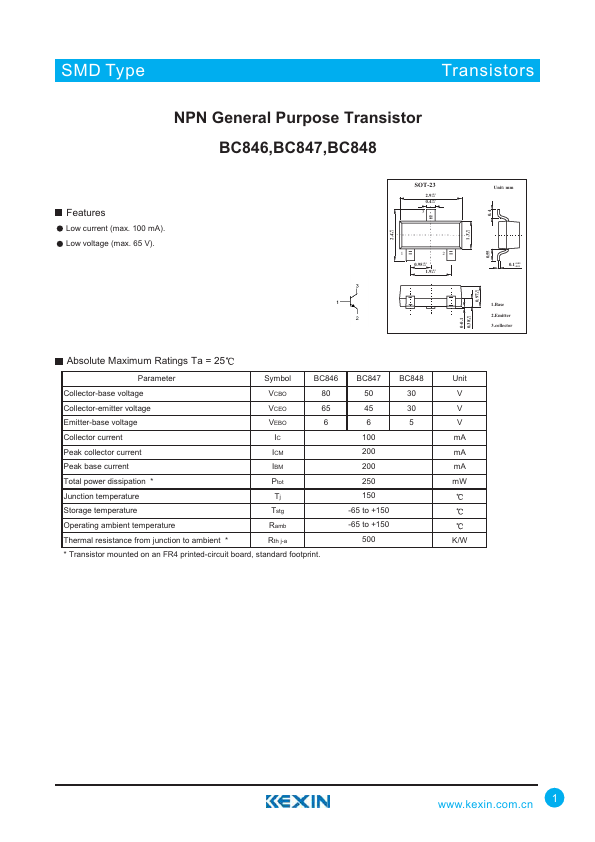

BC846A
Features
Low current (max. 100 m A). Low voltage (max. 65 V).
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
BC846 BC847 BC848
Unit
Collector-base voltage
VCBO
Collector-emitter voltage
VCEO
Emitter-base voltage
VEBO
Collector current
100 m A
Peak collector current
200 m A
Peak base...
