BC848 Datasheet | Kexin Semiconductor

Part: BC848
Description: NPN General Purpose Transistor
Manufacturer: Kexin Semiconductor
Size: 37.70 KB

Datasheet Summary

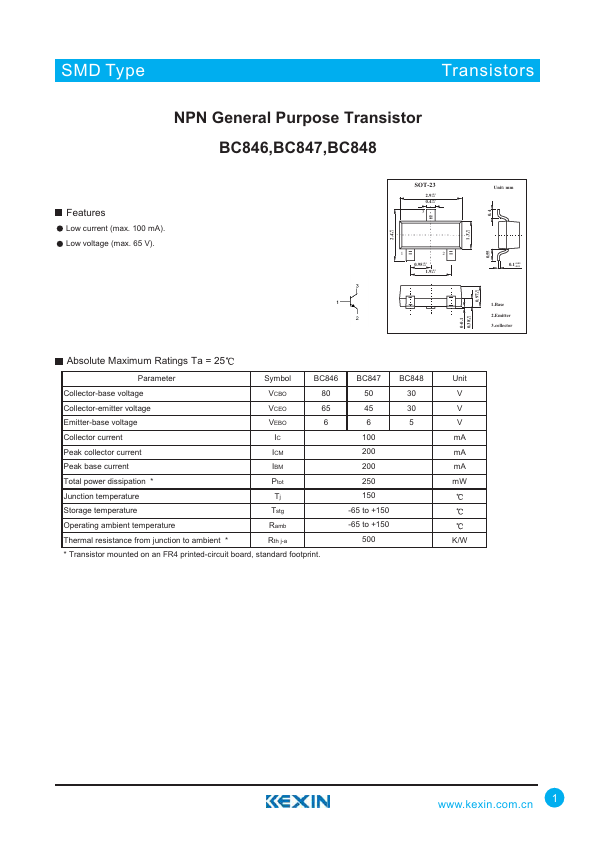

SMD Type TransistIoCrs NPN General Purpose Transistor BC846,BC847,BC848 Features Low current (max. 100 mA). Low voltage (max. 65 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter...

Other BC848 Datasheets

Manufacturer	Part Number	Description
Galaxy Microelectronics	BC848	NPN Transistor
Fairchild Semiconductor	BC848	NPN EPITAXIAL SILICON TRANSISTOR
General Semiconductor	BC848	Small Signal Transistors
Kodenshi AUK Group	BC848	NPN Silicon Transistor
Multicomp	BC848	NPN General Purpose Transistor
