Kexin Electronics BCF30
PNP General Purpose Transistors
| Part No. | BCF30 |
|---|---|
| Datasheet | BCF30 Download |
| Manufacturer | Kexin Electronics |
| Description | PNP General Purpose Transistors |
| Buy | Stock & Price |

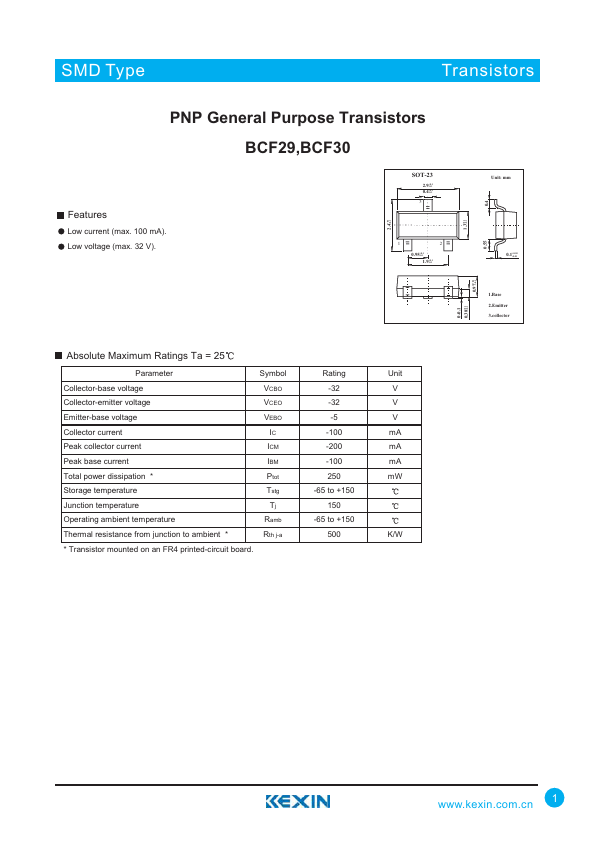

FEATURES
Low current (max. 100 mA). Low voltage (max. 32 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1ABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO -32 V Collector-emitter voltage VCEO -32 V Emitter-base voltage VEBO -5 V Collector current IC -100 mA Peak collector current ICM -200 mA Peak base current IBM -100 mA Total power dissipation * Ptot 250 mW Storage temperature Tstg -65 to +150 Junction temperature Tj 150 Operating ambient temperature Ramb -65 to +150 Thermal resistance from junction to ambient * Rth j-a 500 K/W * Transistor mounted on an FR4 printed-circuit board. 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector 1 SMD Type TransistIoCrs BCF29,BCF30ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Collector cutoff current Emitter cutoff current DC current gain DC current gain BCF29 BCF30 BCF29 BCF30 Collector-emitter saturation voltage...
