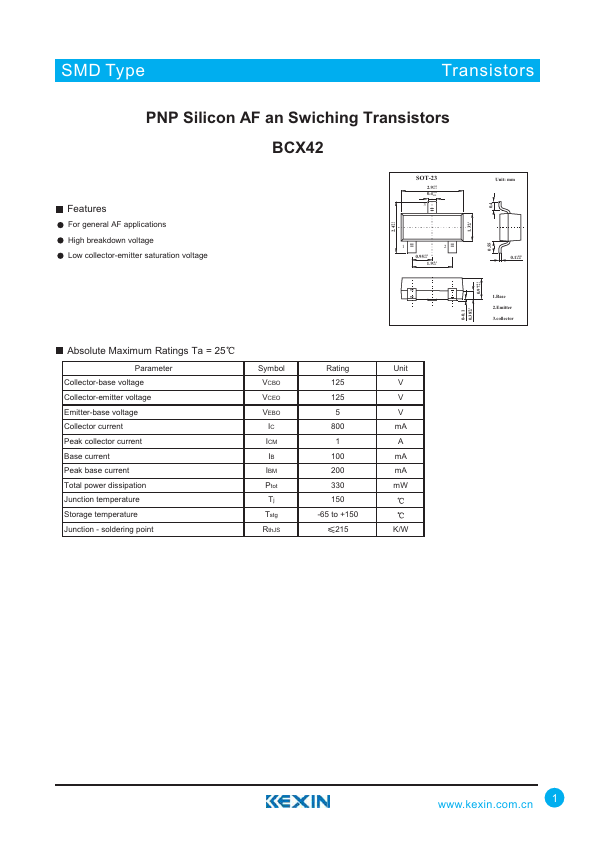

BCX42
Features
For general AF applications High breakdown voltage Low collector-emitter saturation voltage
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Peak collector current Base current Peak base current Total power dissipation Junction temperature Storage temperature Junction
- soldering point
Symbol VCBO VCEO VEBO IC ICM IB IBM Ptot Tj Tstg Rth JS
Rating 125 125 5 800 1 100 200 330 150
-65 to +150 215
Unit V V V m A A m A m A m W
K/W
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
.kexin..cn 1
SMD Type
Transistors

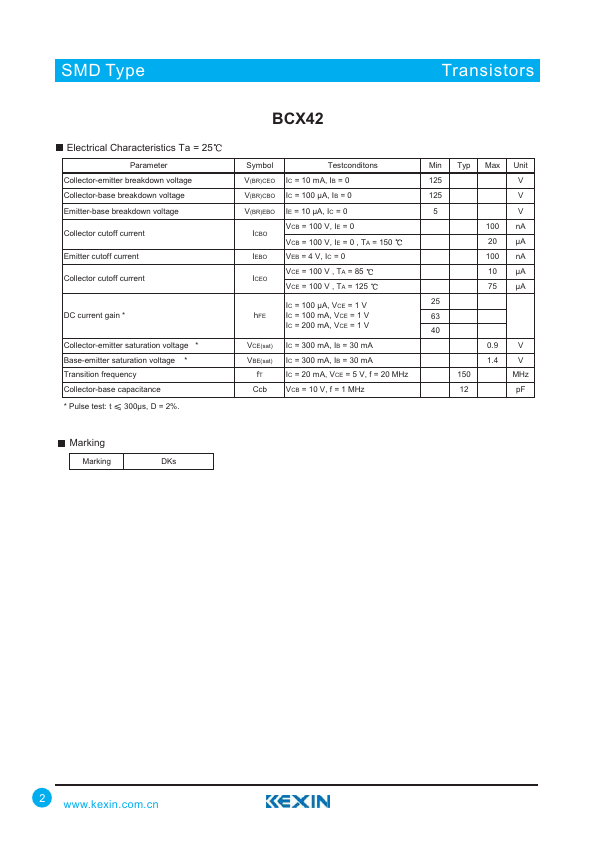

Electrical Characteristics Ta = 25
Parameter Collector-emitter breakdown voltage Collector-base breakdown voltage Emitter-base breakdown voltage
Collector cutoff current
Emitter cutoff current
Collector cutoff current
DC current gain
-...
