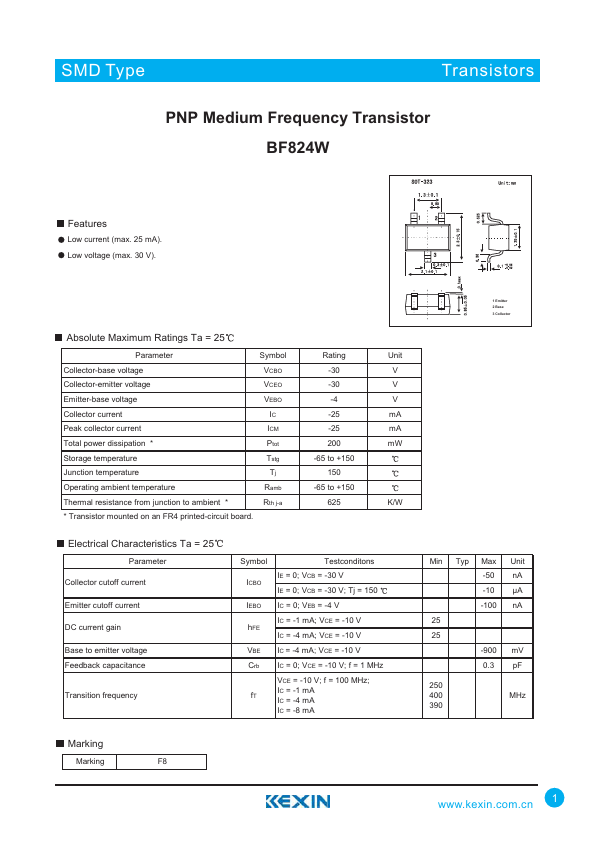

BF824W
Features
Low current (max. 25 m A). Low voltage (max. 30 V).
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Collector-base voltage
VCBO
-30
Collector-emitter voltage
VCEO
-30
Emitter-base voltage
VEBO
-4
Collector current
-25 m A
Peak collector current
-25 m A
Total power dissipation
- Ptot
200 m W
Storage temperature
Tstg
-65 to +150
Junction temperature
Tj
Operating ambient temperature
Ramb
-65 to +150
Thermal resistance from junction to ambient
- Rth...
