BSR20A Datasheet PNP High-Voltage Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors PNP High-Voltage Transistors BSR20,BSR20A.

Download the BSR20A datasheet PDF. This datasheet also includes the BSR20 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

BSR20A pnp high-voltage transistors by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	BSR20A
Manufacturer	Kexin Semiconductor
File Size	35.84 KB
Description	PNP High-Voltage Transistors
Download	BSR20A Download (PDF)

Key Features

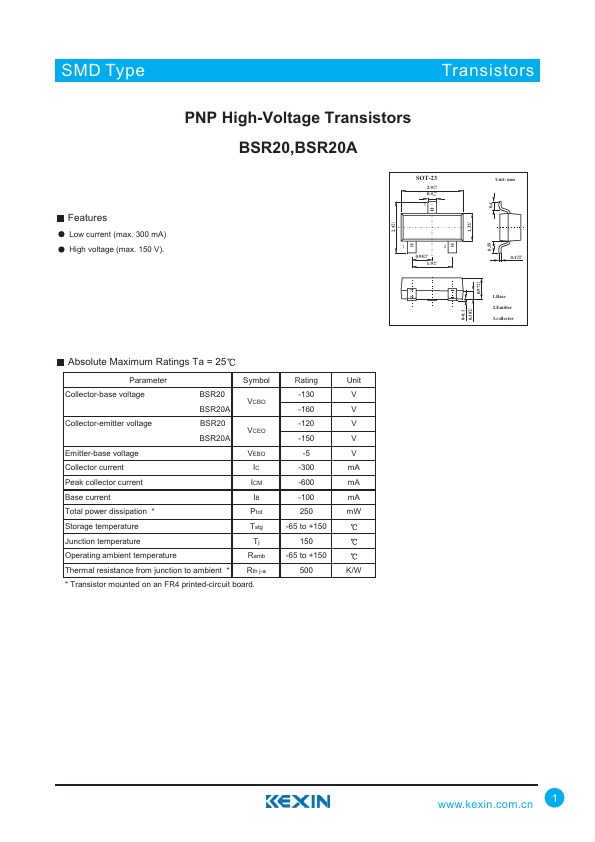

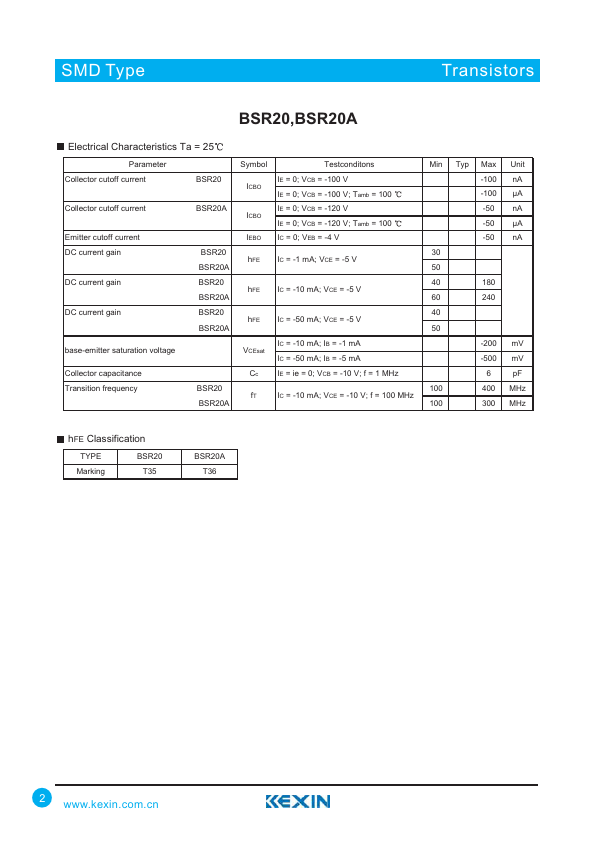

Low current (max. 300 mA) High voltage (max. 150 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage BSR20 -130 V VCBO BSR20A -160 V Collector-emitter voltage BSR20 -120 V VCEO BSR20A -150 V Emitter-base voltage VEBO -5 V Collector cu.
