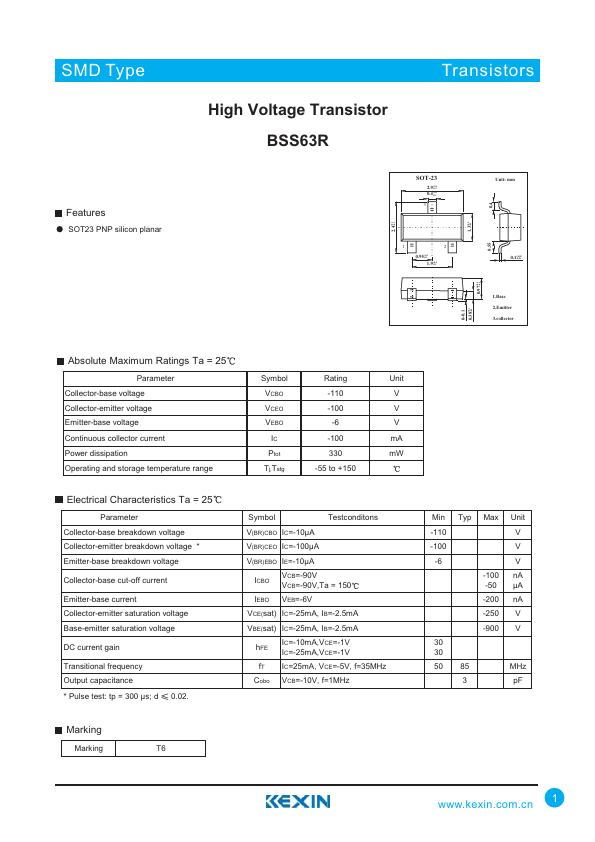

BSS63R
Features
SOT23 PNP silicon planar
Transistors
High Voltage Transistor BSS63R
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
Unit: mm
+0.1 1.3 -0.1
+0.1 2.4 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
0-0.1 +0.1 0.38
-0.1
+0.1 0.97 -0.1
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Continuous collector current Power dissipation Operating and storage temperature range
Symbol
Rating
Unit
VCBO
-110
VCEO
-100
VEBO
-6
-100 m A
Ptot
330 m...
