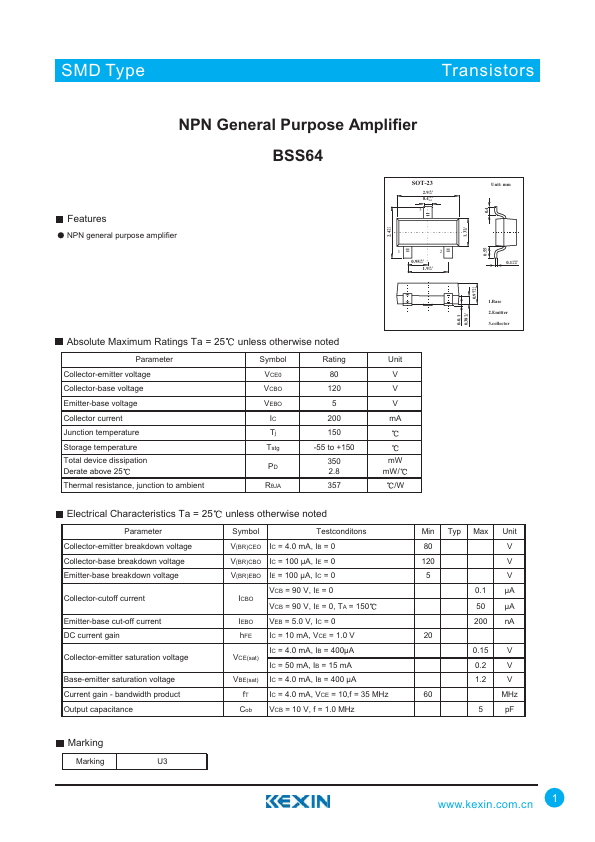

BSS64
Features
NPN general purpose amplifier
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute Maximum Ratings Ta = 25 unless otherwise noted
Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Junction temperature Storage temperature Total device dissipation Derate above 25 Thermal resistance, junction to ambient
Symbol VCE0 VCBO VEBO IC Tj Tstg
RèJA
Rating 80 120 5 200 150
-55 to +150 350 2.8 357
Unit V V V m A m W m W/
/W
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25 unless otherwise noted
Parameter Collector-emitter breakdown voltage Collector-base breakdown voltage Emitter-base breakdown voltage
Collector-cutoff current
Emitter-base cut-off current DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage Current gain
- bandwidth product Output...
