BSS84W - P-channel MOSFET

Key Features

  • s.
  • VDS (V) = -50V.
  • ID = -130mA.
  • RDS(on)max = 10Ω @ VGS =-5V.
  • Low On-Resistance.
  • Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed S G D MOSFET 1.Gate 2.Source 3.Drain.
  • Absolute Maximum Ratings (TA = 25℃ Unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Thermal Resistance, Junction- to-Ambient Junction Temperature Junction Storage Temperature Range Symbol VDS VGS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSS84W P-Channel Power Mosfet GME
BSS84W P-CHANNEL 130mA POWER MOSFET TIPTEK
BSS84W SMD P-Channel MOSFET Formosa MS
BSS84W P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR Diodes Incorporated
BSS84W-G P-Channel MOSFET MOSFET

Other Datasheets by Kexin Semiconductor

Part Number Description
BSS84 P-Channel MOSFET
BSS80 PNP Silicon Switching Transistors
BSS80B PNP Silicon Switching Transistors
BSS80C PNP Silicon Switching Transistors
BSS81 NPN Silicon Switching Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

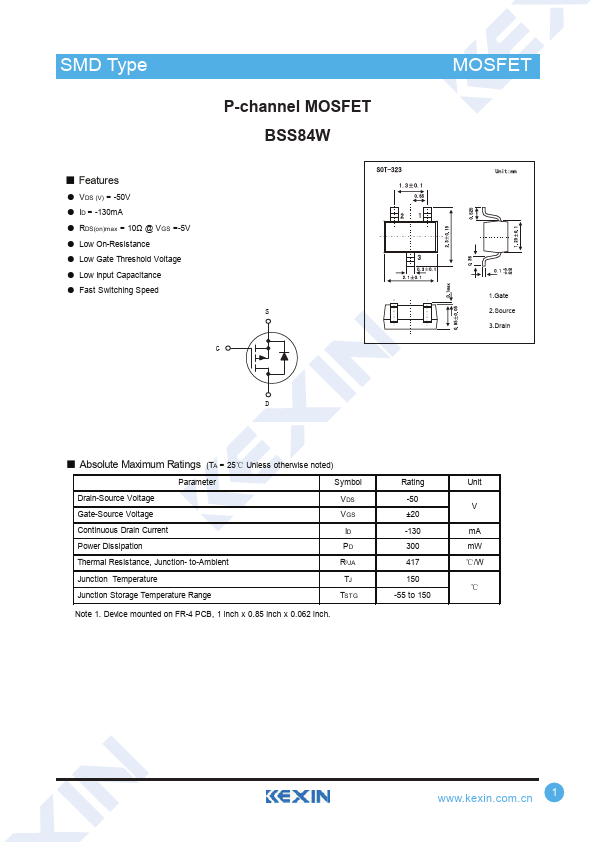

SMD Type P-channel MOSFET BSS84W ■ Features ● VDS (V) = -50V ● ID = -130mA ● RDS(on)max = 10Ω @ VGS =-5V ● Low On-Resistance ● Low Gate Threshold Voltage ● Low Input Capacitance ● Fast Switching Speed S G D MOSFET 1.Gate 2.Source 3.Drain ■ Absolute Maximum Ratings (TA = 25℃ Unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Power Dissipation Thermal Resistance, Junction- to-Ambient Junction Temperature Junction Storage Temperature Range Symbol VDS VGS ID PD RᶿJA TJ TST G Note 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch. Rating -50 ±20 -130 300 417 150 -55 to 150 Unit V mA mW ℃/W ℃ www.kexin.com.
