BT131-500B - Triacs

Key Features

  • s.
  • Repetitive peak off-state voltages :VDRM=500V.
  • RMS on-state current :IT(RMS)=1A.
  • Non-repetitive peak on-state current :ITSM=16A SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 T2 T1 1 2 3 2.9 0.70+0.1 -0.1 1 main terminal1 4.6 G 2 main teminal 2 3 gate.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current I2t for fusing Repetitive rate.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BT131-500 Triacs NXP
BT131-500 Triacs Inchange Semiconductor
BT131-600 4Q Triac NXP
BT131-600 4Q Triac WeEn
BT131-600 Sensitive Gate Triacs HAOPIN

Other Datasheets by Kexin Semiconductor

Part Number Description
BT134W Triacs
BT134W-500 Triacs
BT134W-600 Triacs
BT134W-800 Triacs
BT136-500 Triacs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

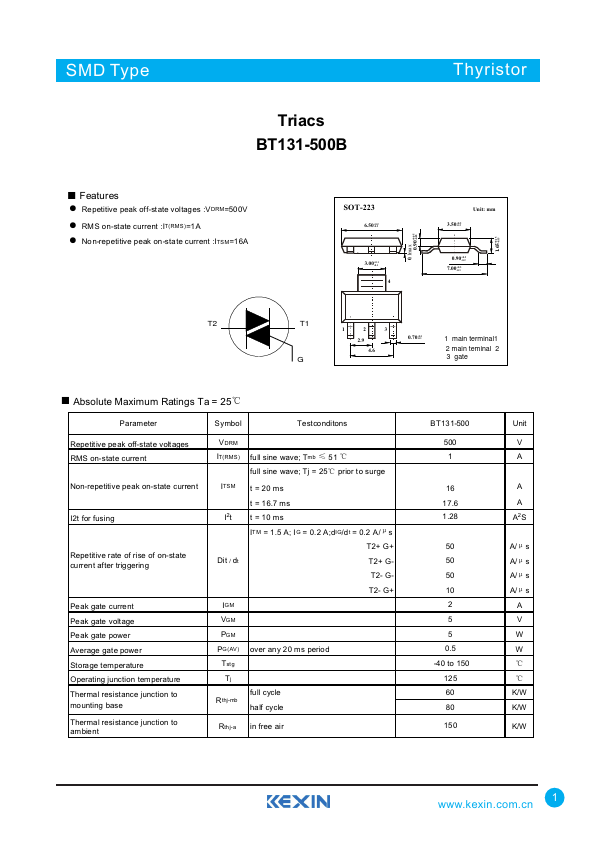

SSMMDDTTyyppee Triacs BT131-500B ThyristIoCr 0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.15 ■ Features ● Repetitive peak off-state voltages :VDRM=500V ● RMS on-state current :IT(RMS)=1A ● Non-repetitive peak on-state current :ITSM=16A SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 T2 T1 1 2 3 2.9 0.70+0.1 -0.1 1 main terminal1 4.
