BT137-500 - Triacs

Key Features

  • s.
  • Repetitive peak off-state voltages :VDRM=500V.
  • RMS on-state current :IT(RMS)=8A.
  • Non-repetitive peak on-state current :ITSM=65A TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 + 0.15 1 . 5 0 -0.15 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm 3.80 + 0 .15 5 . 5 5 -0.15 + 0.2 9 . 7 0 -0.2 + 0.15 0 . 5 0 -0.15 + 0.28 1 . 5 0 -0.1 0.80+0.1 -0.1 0.127 max + 0.25 2 . 6 5 -0.1 T2 T1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 G.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive peak off.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BT137-500 Triacs NXP
BT137-500 TRIACS Comset Semiconductors
BT137-500D Triacs logic level NXP
BT137-500E Triacs NXP
BT137-500E Triacs INCHANGE

Other Datasheets by Kexin Semiconductor

Part Number Description
BT137-600E TRIACS Thyristor
BT137M TRIACS Thyristor
BT137M-500 TRIACS Thyristor
BT137M-600 TRIACS Thyristor
BT137M-800 TRIACS Thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

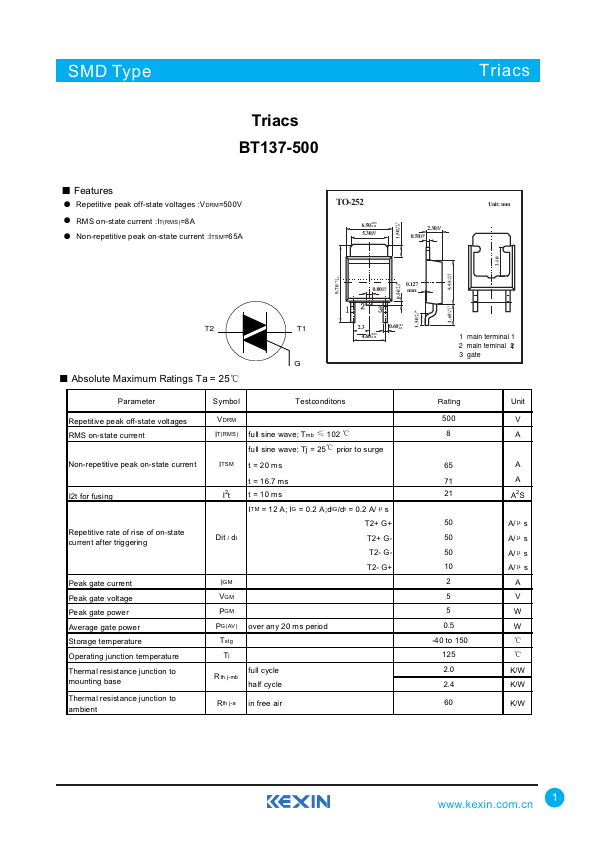

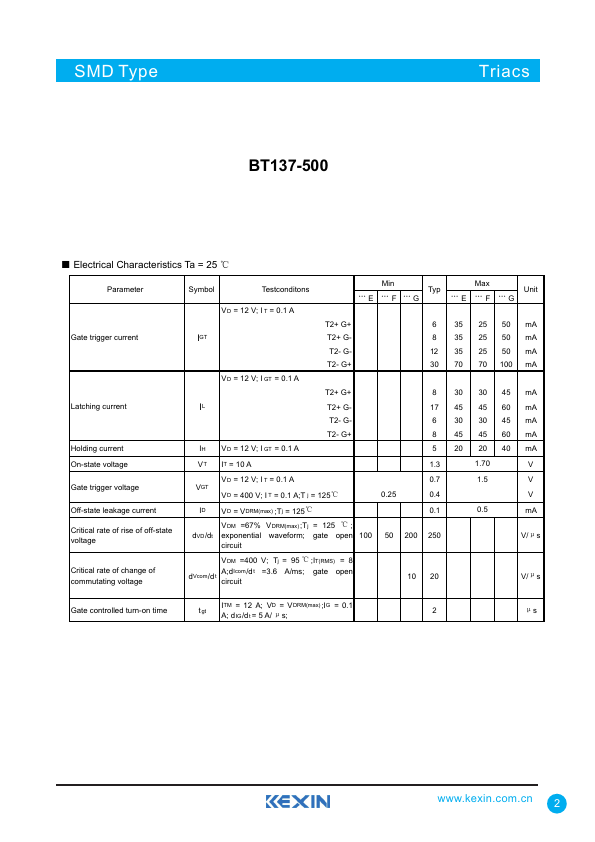

SMD Type TriaIcs Triacs BT137-500 ■ Features ● Repetitive peak off-state voltages :VDRM=500V ● RMS on-state current :IT(RMS)=8A ● Non-repetitive peak on-state current :ITSM=65A TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 + 0.15 1 . 5 0 -0.15 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm 3.80 + 0 .15 5 . 5 5 -0.15 + 0.2 9 . 7 0 -0.2 + 0.15 0 . 5 0 -0.15 + 0.28 1 . 5 0 -0.1 0.80+0.1 -0.1 0.127 max + 0.25 2 . 6 5 -0.1 T2 T1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.
