BT139B-500 - Triacs

Key Features

  • RMS on-state current :IT(RMS)=16A Non-repetitive peak on-state current:ITSM=140A +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Main Terminal 1 2 Main Terminal 2 3 Gate 4 Main Terminal 2 Absolute Maximum Ratings Ta = 25 Parameter Symbol Peak Repetitive Off-State Voltage VDRM,VRRM On-State RMS Current IT(RMS) Peak N.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BT139B-500 Triacs NXP
BT139B-500E Triacs sensitive gate NXP
BT139B-500F Triacs NXP
BT139B-500G Triacs NXP
BT139B-500H Triacs high noise immunity NXP

Other Datasheets by Kexin Semiconductor

Part Number Description
BT139B-600 Triacs
BT139B-800 Triacs
BT131-500B Triacs
BT134W Triacs
BT134W-500 Triacs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

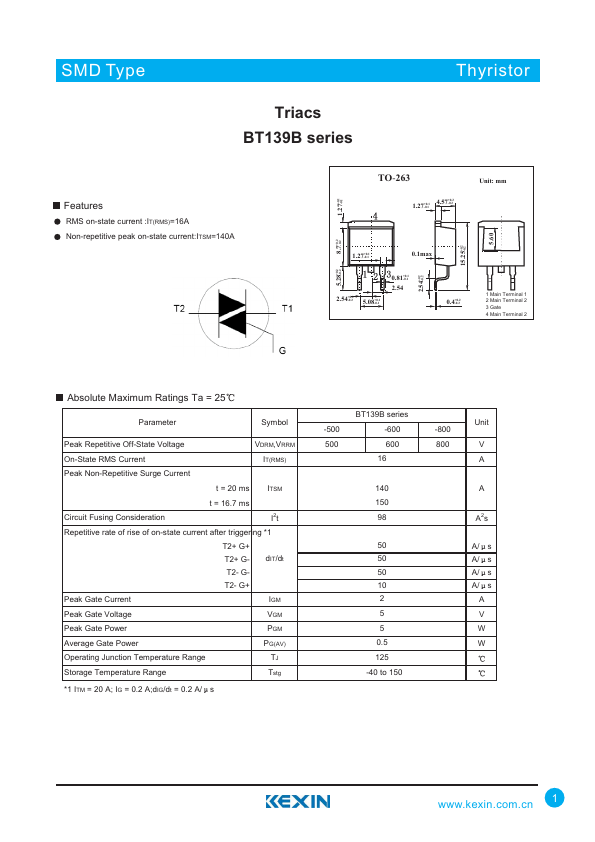

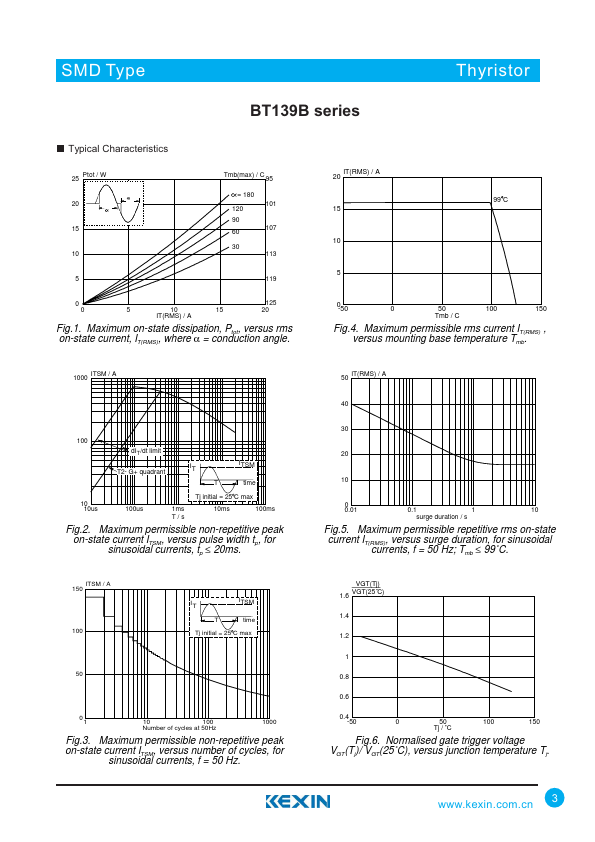

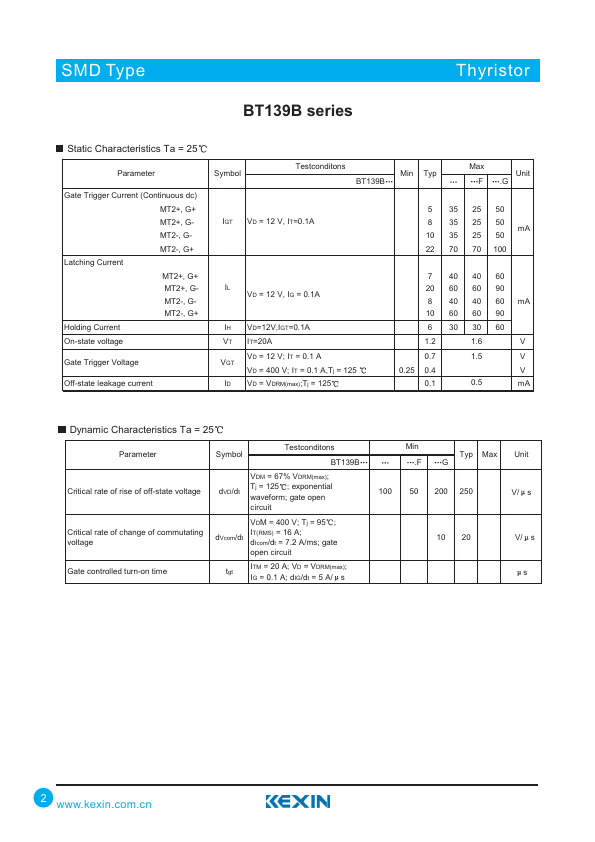

SMD Type Thyristor Triacs BT139B series Features RMS on-state current :IT(RMS)=16A Non-repetitive peak on-state current:ITSM=140A +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Main Terminal 1 2 Main Terminal 2 3 Gate 4 Main Terminal 2 Absolute Maximum Ratings Ta = 25 Parameter Symbol Peak Repetitive Off-State Voltage VDRM,VRRM On-State RMS Current IT(RMS) Peak Non-Repetitive Surge Current t = 20 ms ITSM t = 16.
