CR05AS
CR05AS is Silicon Controlled Rectifiers manufactured by Kexin Semiconductor.

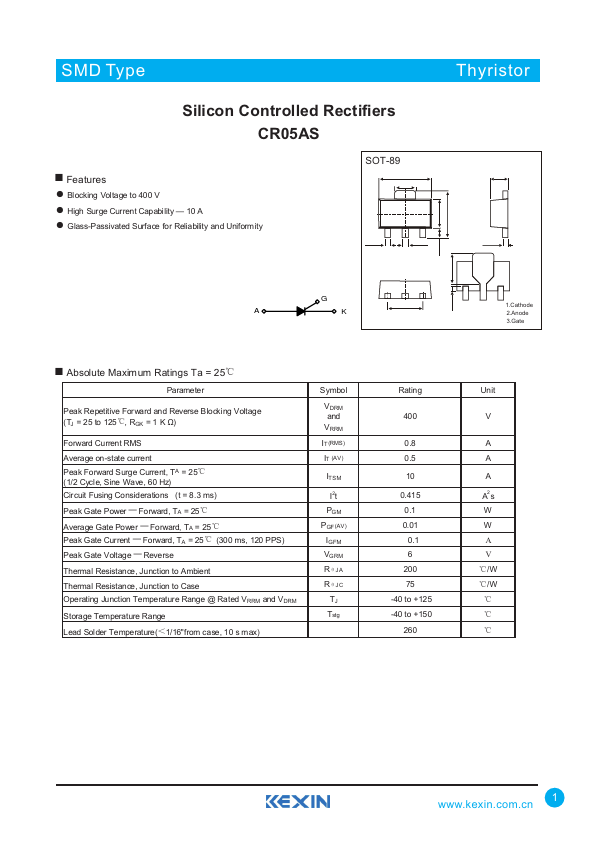

Features
- Blocking Voltage to 400 V
- High Surge Current Capability
- 10 A
- Glass-Passivated Surface for Reliability and Uniformity
SOT-89
Thyristor
1.Cathode 2.Anode 3.Gate
- Absolute Maximum Ratings Ta = 25℃
Parameter
Peak Repetitive Forward and Reverse Blocking Voltage (TJ = 25 to 125℃, RGK = 1 K Ω)
Forward Current RMS Average on-state current Peak Forward Surge Current, TA = 25℃ (1/2 Cycle, Sine Wave, 60 Hz) Circuit Fusing Considerations (t = 8.3 ms) Peak Gate Power ─ Forward, TA = 25℃ Average Gate Power ─ Forward, TA = 25℃ Peak Gate Current ─ Forward, TA = 25℃ (300 ms, 120 PPS) Peak Gate Voltage ─ Reverse Thermal Resistance, Junction to Ambient Thermal Resistance, Junction to Case Operating Junction Temperature Range @ Rated VRRM and VDRM Storage Temperature Range Lead Solder Temperature(＜1/16"from case, 10 s max)
Symbol VDRM and VRRM IT (RMS ) IT (AV)
IT SM
I2t PGM PGF (AV) IGFM VGRM RθJA RθJC TJ Tstg
Rating
0.8 0.5 10 0.415 0.1 0.01 0.1 6 200 75 -40 to +125 -40 to +150 260
Unit
As W W A V ℃/W ℃/W ℃ ℃ ℃
1 .kexin..cn
SMD Type
Thyristor

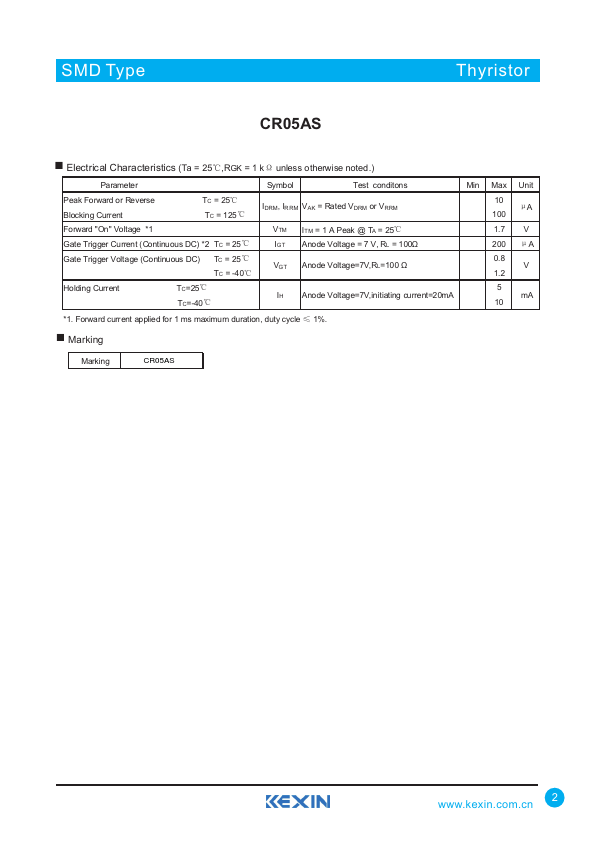

- Electrical Characteristics (Ta = 25℃,RGK = 1 kΩ unless otherwise noted.)
Parameter
Symbol
Test conditons
Min Max Unit
Peak Forward or Reverse Blocking Current
TC = 25℃ TC = 125℃
IDRM, IR RM VAK = Rated VDRM or VRRM
10 μA
Forward "On" Voltage
- 1 Gate Trigger Current (Continuous DC)
- 2 TC =...
