CR08AS Datasheet PDF

FEATURES

IT(AV) :0.8A VDRM :400V/600V IGT :100 A

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Repetitive peak reverse voltage Non-repetitive peak reverse voltage DC reverse voltage Repetitive peak off-state voltage *1 DC off-state voltage *1 RMS on-state current Average on-state current Surge on-state current I2t for fusing Peak gate power dissipation Average gate power dissipation Peak gate forward voltage Peak gate reverse voltage Peak gate forward current Junction temperature Storage temperature *1 With Gate-to-cathode resistance RGK=1k Symbol CR08AS-8 CR08AS-12 Unit VRRM 400 600 V VRSM 500 720 V VR(DC) 320 480 V VDRM 400 600 V VD(DC) 320 480 V IT(RMS) 1.26 A IT(AV) 0.8 A ITSM I2t PGM 10 A 0.42 A2s 0.5 W PG(AV) 0.1 W VFGM 6 V VRGM 6 V IFGM 0.3 A Tj -40 to +125 Tstg -40 to +125 1 GATE 2 ANODE 3 CATHODE 1 SMD Type CR08AS Thyristor

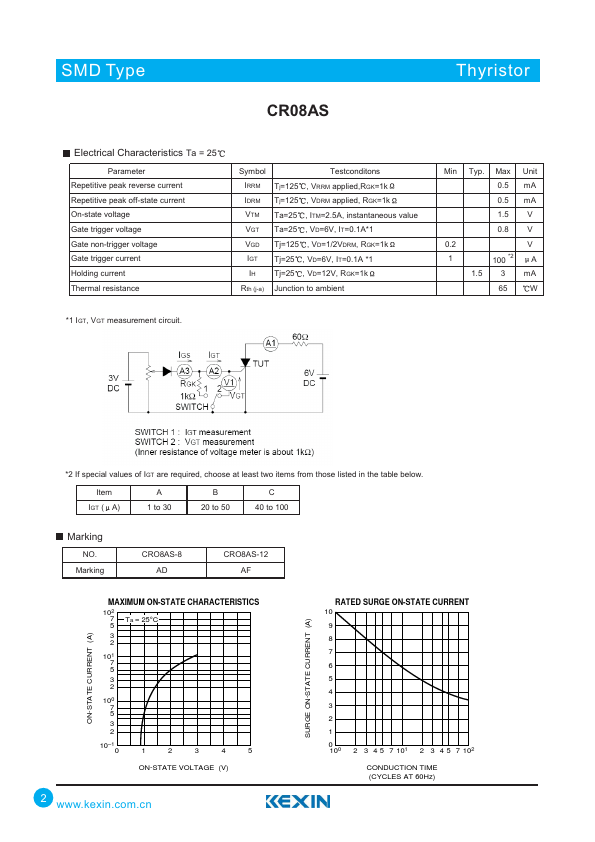

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Repetitive peak reverse current Repetitive peak off-state current On-state voltage Gate trigger voltage Gate non-...
