CR5AM - Silicon Bidirectional Thyristors

Key Features

  • s.
  • Blocking voltage to 400 V.
  • General purpose bidirectional switching +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 +0.15 1.50 -0.15 0.80+0.1 -0.1 0.127 max +0.15 0.50 -0.15 +0.28 1.50 -0.1 T2 T1 G 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.25 2.65 -0.1 +0.15 5.55 -0.15 Unit: mm 1.T1 2.T2 3.GATE 3.80.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CR5AS Thyristor Mitsubishi Electric Semiconductor
CR5AS 5A Phase Control SCR Powerex Power Semiconductors
CR5AS-12 Thyristor Renesas
CR5AS-12A Thyristor Renesas
CR5AS-8UE Thyristor Renesas

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

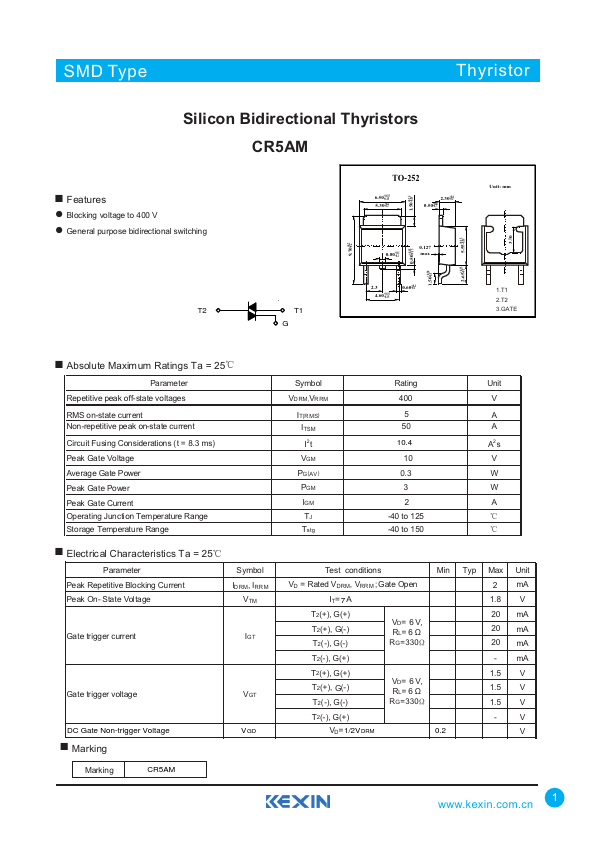

SMD Type Thyristor Silicon Bidirectional Thyristors CR5AM ■ Features ● Blocking voltage to 400 V ● General purpose bidirectional switching +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 +0.15 1.50 -0.15 0.80+0.1 -0.1 0.127 max +0.15 0.50 -0.15 +0.28 1.50 -0.1 T2 T1 G 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.25 2.65 -0.1 +0.15 5.55 -0.15 Unit: mm 1.T1 2.T2 3.GATE 3.80 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current Circuit Fusing Considerations (t = 8.
