DMP1260 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-3.3 A.
  • RDS(ON) ＜ 75mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 140mΩ (VGS =-2.5V) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 Drain Gate Source 0-0.1 +0.1 0.38 -0.1 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Pulsed Drain Cur.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMP1200UFR4 P-Channel MOSFET Diodes
DMP1245UFCL P-Channel MOSFET Diodes
DMP1005UFDF P-CHANNEL ENHANCEMENT MODE MOSFET DIODES
DMP1007UCB9 P-CHANNEL MOSFET DIODES
DMP1008UCA9 P-CHANNEL MOSFET DIODES

Other Datasheets by Kexin Semiconductor

Part Number Description
DMP2066LDM P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

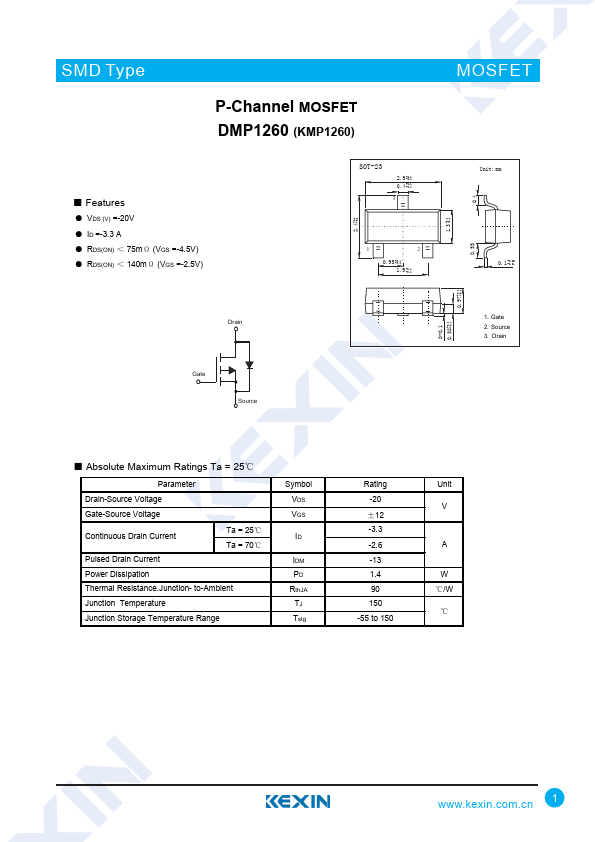

SMD Type P-Channel MOSFET DMP1260 (KMP1260) ■ Features ● VDS (V) =-20V ● ID =-3.3 A ● RDS(ON) ＜ 75mΩ (VGS =-4.5V) ● RDS(ON) ＜ 140mΩ (VGS =-2.5V) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 Drain Gate Source 0-0.1 +0.1 0.38 -0.1 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Junction Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating -20 ±12 -3.3 -2.6 -13 1.4 90 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
