DMP2066LDM - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-4.6 A.
  • RDS(ON) ＜ 40mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 70mΩ (VGS =-2.5V).
  • Low Input/Output Leakage ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 MOSFET Unit:mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 0-0.1 +0.1 0.68 -0.1 D D S D D G.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMP2066LDM P-Channel MOSFET Diodes
DMP2066LSD Dual P-Channel MOSFET Diodes
DMP2066LSN P-Channel MOSFET Diodes
DMP2066LSS P-Channel MOSFET Diodes
DMP2066LVT P-Channel MOSFET Diodes

Other Datasheets by Kexin Semiconductor

Part Number Description
DMP1260 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

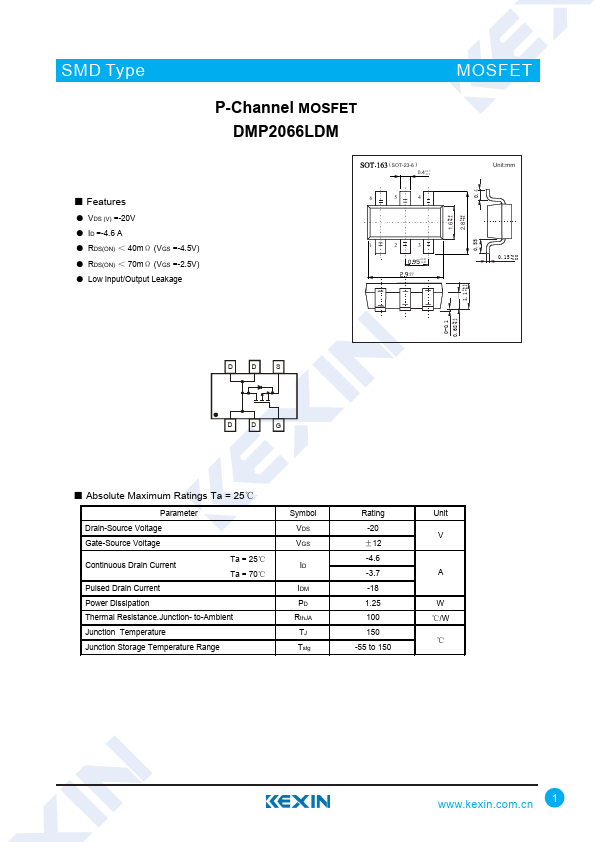

SMD Type P-Channel MOSFET DMP2066LDM ■ Features ● VDS (V) =-20V ● ID =-4.6 A ● RDS(ON) ＜ 40mΩ (VGS =-4.5V) ● RDS(ON) ＜ 70mΩ (VGS =-2.5V) ● Low Input/Output Leakage ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 MOSFET Unit:mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 0-0.1 +0.1 0.68 -0.1 D D S D D G ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Junction Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating -20 ±12 -4.6 -3.7 -18 1.25 100 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
