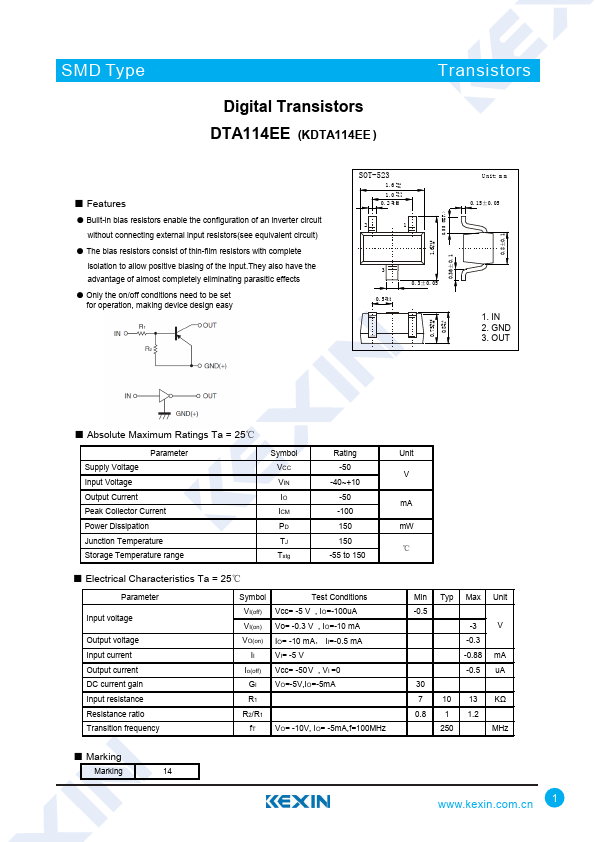

Kexin Electronics DTA114EE
Digital Transistors
| Part No. | DTA114EE |
|---|---|
| Datasheet | DTA114EE Download |
| Manufacturer | Kexin Electronics |
| Description | Digital Transistors |
| Buy | Stock & Price |
FEATURES
● Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)● The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of almost completely eliminating parasitic effects
● Only the on/off conditions need to be set for operation, making device design easy SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 U nit: m m 0.15±0.05 0.55 (REF.) 0.8±0.1 +0.15 1.6 -0.15 0.36±0.1 3 0.5 +0.1 -0.1 0.3±0.05 + 0.75 0.05 -0.05 +0.1 0.8 -0.1 1. IN 2. GND 3. OUT
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Supply Voltage Input Voltage Output Current Peak Collector Current Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCC -50 V VIN -40~+10 IO -50 mA ICM -100 PD 150 mW TJ 150 ℃ Tstg -55 to 150●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Input voltage Output voltage Input current Output...
