DTC114EK
DTC114EK is Digital Transistors manufactured by Kexin Semiconductor.

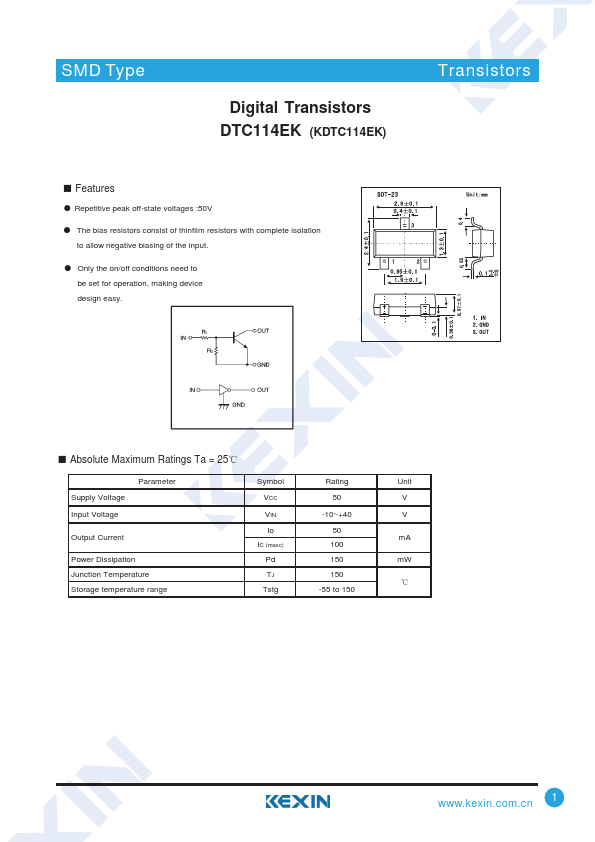

Features
ƽ Repetitive peak off-state voltages :50V
ƽ The bias resistors consist of thinfilm resistors with plete isolation to allow negative biasing of the input.
ƽ Only the on/off conditions need to be set for operation, making device design easy.
Transistors
Ƶ Absolute Maximum Ratings Ta = 25ć
Supply Voltage Input Voltage
Parameter
Output Current
Power Dissipation Junction Temperature Storage temperature range
Symbol
Rating
Unit
-10~+40
Io
50 m A
IC (maxc)
Pd
150 m W
ć
Tstg
-55 to 150
.kexin..cn 1
SMD Type
Digital Trtansistors DTC114E. (KDTC114E.)
Transistors

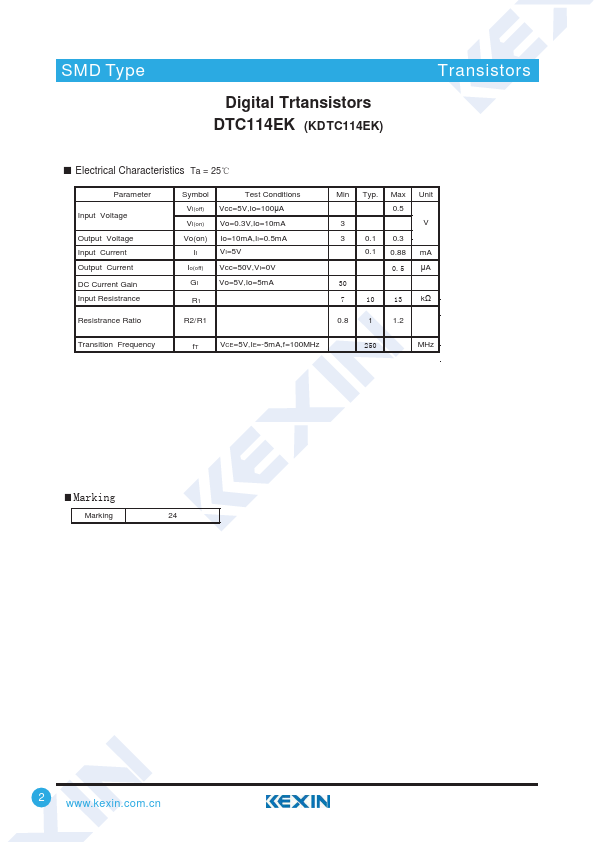

Ƶ Electrical Characteristics Ta = 25ć
Parameter
Input Voltage
Output Voltage Input Current Output Current DC Current Gain Input Resistrance
Resistrance Ratio
Symbol VI(off) VI(on) Vo(on) II Io(off) GI
Test Conditions Vcc=5V,Io=100ȝA Vo=0.3V,Io=10m A Io=10m A,II=0.5m A VI=5V Vcc=50V,VI=0V Vo=5V,Io=5m...
