DTS2315 - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-3.85A (VGS =-4.5V).
  • RDS(ON) ＜48mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 65mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 100mΩ (VGS =-1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTS2315 P-Channel MOSFET Din-Tek
DTS2312 N-Channel MOSFET Din-Tek
DTS2314 N-Channel MOSFET Din-Tek
DTS2318 N-Channel MOSFET Din-Tek
DTS2319 P-Channel MOSFET Din-Tek

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

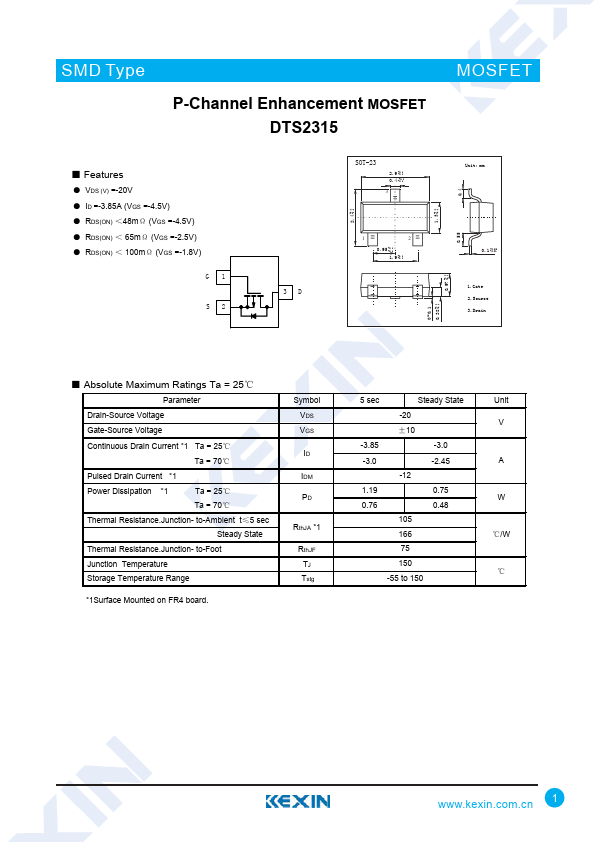

SMD Type P-Channel Enhancement MOSFET DTS2315 ■ Features ● VDS (V) =-20V ● ID =-3.85A (VGS =-4.5V) ● RDS(ON) ＜48mΩ (VGS =-4.5V) ● RDS(ON) ＜ 65mΩ (VGS =-2.5V) ● RDS(ON) ＜ 100mΩ (VGS =-1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current *1 Ta = 25℃ Ta = 70℃ Pulsed Drain Current *1 Power Dissipation *1 Ta = 25℃ Ta = 70℃ Thermal Resistance.Junction- to-Ambient t≤5 sec Steady State Thermal Resistance.Junction- to-Foot Junction Temperature Storage Temperature Range *1Surface Mounted on FR4 board.
