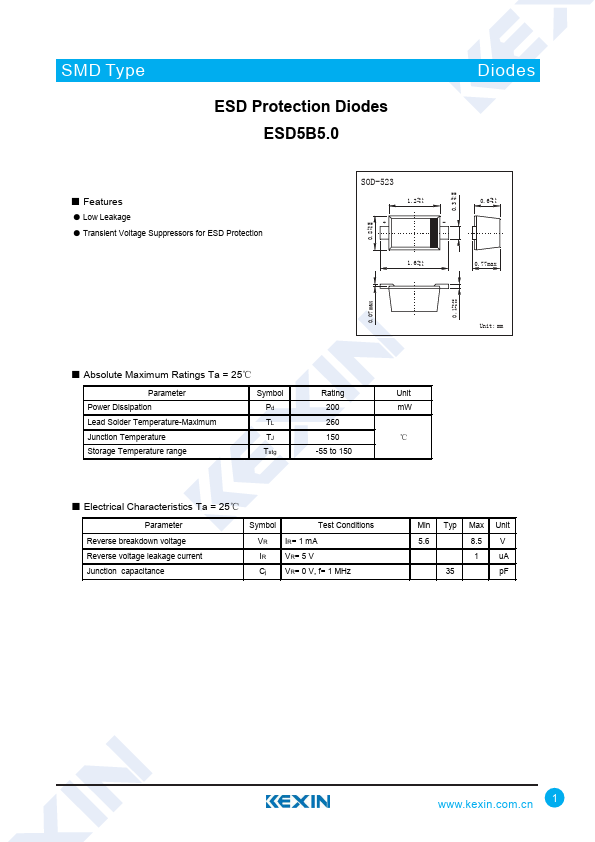

ESD5B5.0 Datasheet PDF

FEATURES

● Low Leakage
● Transient Voltage Suppressors for ESD Protection SOD-523 1.2 +0.1 -0.1 + - +0.05 0.3 -0.05 0.6 +0.1 -0.1 +0.05 0.8 -0.05 1.6 +0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max
●

ABSOLUTE MAXIMUM RATINGS

Ta = 25℃ Parameter Symbol Rating Unit Power Dissipation Pd 200 mW Lead Solder Temperature-Maximum TL 260 Junction Temperature TJ 150 ℃ Storage Temperature range Tstg -55 to 150 Unit: mm
●

ELECTRICAL CHARACTERISTICS

Ta = 25℃ Parameter Reverse breakdown voltage Reverse voltage leakage current Junction capacitance Symbol Test Conditions VR IR= 1 mA IR VR= 5 V Cj VR= 0 V, f= 1 MHz Min Typ Max Unit 5.6 8.5 V 1 uA 35 pF 1
