Kexin Electronics ESD5Z12
TVS Diodes
| Part No. | ESD5Z12 |
|---|---|
| Datasheet | ESD5Z12 Download |
| Manufacturer | Kexin Electronics |
| Description | TVS Diodes |
| Buy | Stock & Price |
FEATURES

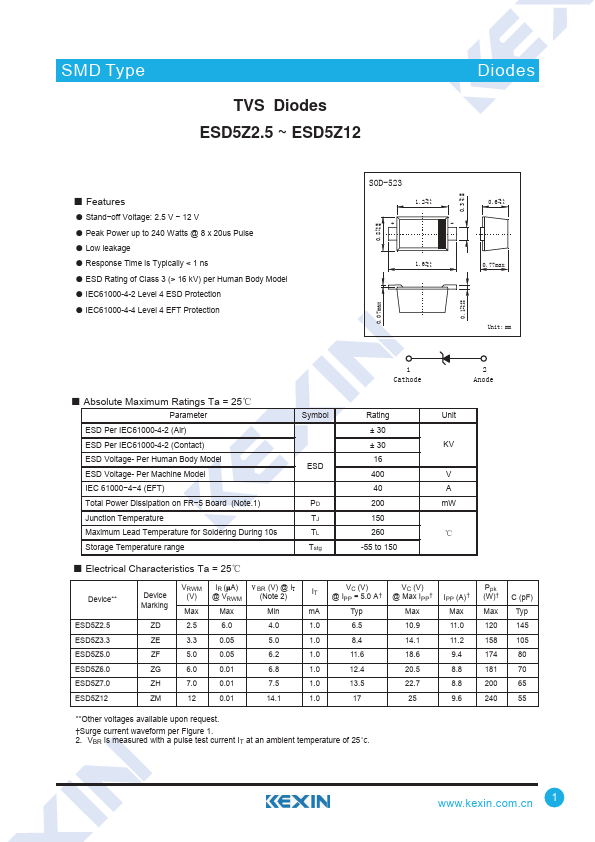

ƽ Standíoff Voltage: 2.5 V í 12 V ƽ Peak Power up to 240 Watts @ 8 x 20us Pulse ƽ Low leakage ƽ Response Time is Typically < 1 ns ƽ ESD Rating of Class 3 (> 16 kV) per Human Body Model ƽ IEC61000-4-2 Level 4 ESD Protection ƽ IEC61000-4-4 Level 4 EFT Protection 62' PD[ PD[ 8QLW PP &DWKRGH $QRGH ƵABSOLUTE MAXIMUM RATINGS
Ta = 25ć Parameter Symbol Rating Unit ESD Per IEC61000-4-2 (Air) ± 30 ESD Per IEC61000-4-2 (Contact) ± 30 KV ESD Voltage- Per Human Body Model ESD Voltage- Per Machine Model 16 ESD 400 V IEC 61000í4í4 (EFT) 40 A Total Power Dissipation on FRí5 Board (Note.1) PD 200 mW Junction Temperature TJ 150 Maximum Lead Temperature for Soldering During 10s TL 260 ć Storage Temperature range Tstg -55 to 150 ƵELECTRICAL CHARACTERISTICS
