Kexin Electronics ESD8D12
TVS Diodes
| Part No. | ESD8D12 |
|---|---|
| Datasheet | ESD8D12 Download |
| Manufacturer | Kexin Electronics |
| Description | TVS Diodes |
| Buy | Stock & Price |
FEATURES
ƽ Standíoff Voltage: 3.3 V í 12 V ƽ Low leakage ƽ Response Time is Typically < 1 ns ƽ ESD Rating of Class 3 (> 16 kV) per Human Body Model ƽ IEC61000-4-2 Level 4 ESD Protection 1 2 ƵABSOLUTE MAXIMUM RATINGS
Ta = 25ć Parameter ESD Per IEC61000-4-2 (Air) ESD Per IEC61000-4-2 (Contact) ESD Voltage- Per Human Body Model Total Power Dissipation on FR-5 Board Junction Temperature Maximum Lead Temperature for Soldering During 10s Storage Temperature range Symbol VPP ESD PD TJ TL Tstg CATHODE Rating Unit ± 15 ±8 KV 16 150 mW 150 260 ć -55 to 155 ANODE ƵELECTRICAL CHARACTERISTICS

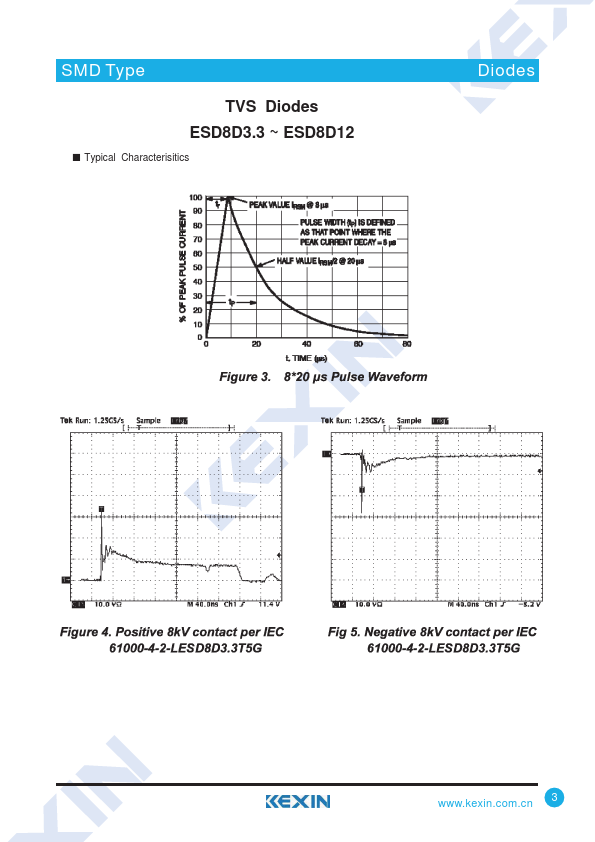

Ta = 25ć Device ES D8D3.3 ES D8D5.0 ES D8D12 VRW M (V) Max 3.3 5.0 12 IR VBR IT ( XA) (V) mA @ @ IT VRWM (Note 1) Max Min 2.5 5.0 1.0 1.0 6.2 1.0 1.0 13.3 1.0 IPP VC PPK C (A) (V) (W) (pF) @ Max IPP (8*20 us) (Note 2) (Note 2) Max Max Typ Typ 9.8 10.4 102 80 8.7 12.3 107 65 5.9 23.7 140 30 Other voltage available upon request. Note.1 . VBR is measured with a pulse test current IT at an ambient temperature of 25 ¥ Note.2 Surge current waveform per Figure 3.
