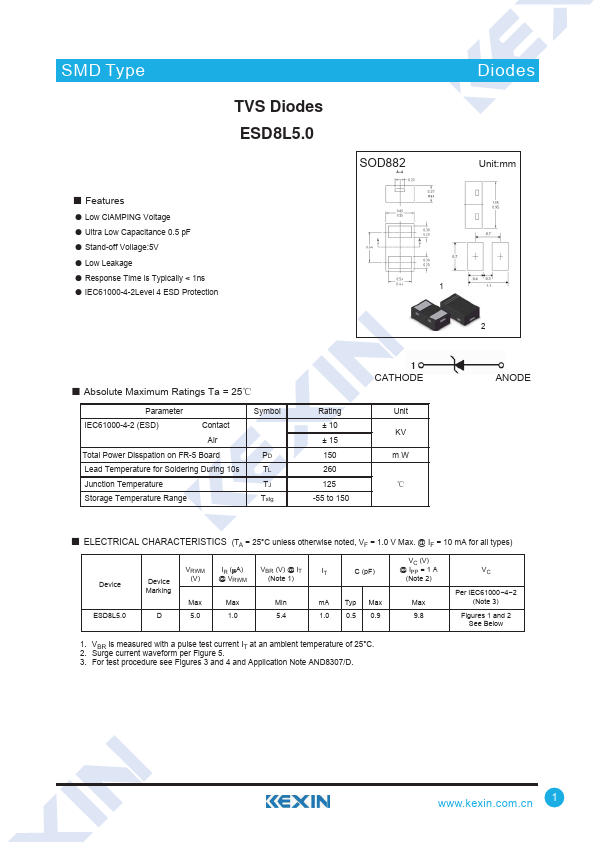

Kexin Electronics ESD8L5.0
TVS Diodes
| Part No. | ESD8L5.0 |
|---|---|
| Datasheet | ESD8L5.0 Download |
| Manufacturer | Kexin Electronics |
| Description | TVS Diodes |
| Buy | Stock & Price |
FEATURES
ƽ Low ClAMPING Voltage ƽ Ultra Low Capacitance 0.5 pF ƽ Stand-off Voliage:5V ƽ Low Leakage ƽ Response Time is Typically < 1ns ƽ IEC61000-4-2Level 4 ESD Protection Diodes SOD882 Unit:mm 1 2 ƵABSOLUTE MAXIMUM RATINGS
Ta = 25ć Parameter IEC61000-4-2 (ESD) Contact Air Total Power Disspation on FR-5 Board Lead Temperature for Soldering During 10s Junction Temperature Storage Temperature Range Symbol PD TL TJ Tstg CATHODE Rating ± 10 ± 15 150 260 125 -55 to 150 Unit KV mW ć ANODE ƵELECTRICAL CHARACTERISTICS

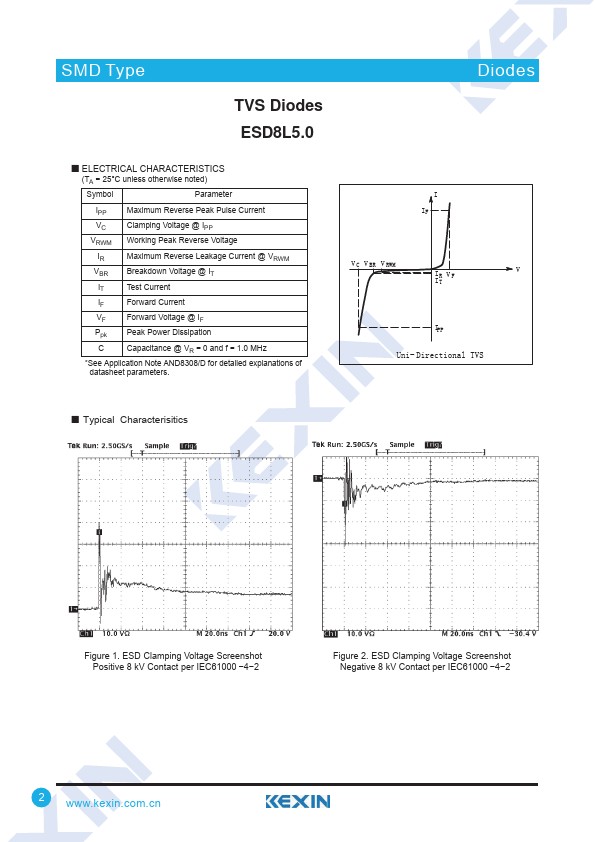

(TA = 25°C unless otherwise noted, VF = 1.0 V Max. @ IF = 10 mA for all types) Device ESD8L5.0 Device Marking D VRWM (V) Max 5.0 IR ( A) @ VRWM Max 1.0 VBR (V) @ IT (Note 1) Min 5.4 IT C (pF) mA Typ Max 1.0 0.5 0.9 VC (V) @ IPP = 1 A (Note 2) Max 9.8 VC Per IEC61000í4í2 (Note 3) Figures 1 and 2 See Below 1. VBR is measured with a pulse test current IT at an ambient temperature of 25°C. 2. Surge current waveform per Figure 5. 3. For test procedure see Figures 3 and 4 and Application Note AND8307/D.
