Kexin Electronics FCX1053A
NPN Silicon Power Switching Transistor
| Part No. | FCX1053A |
|---|---|
| Datasheet | FCX1053A Download |
| Manufacturer | Kexin Electronics |
| Description | NPN Silicon Power Switching Transistor |
| Buy | Stock & Price |

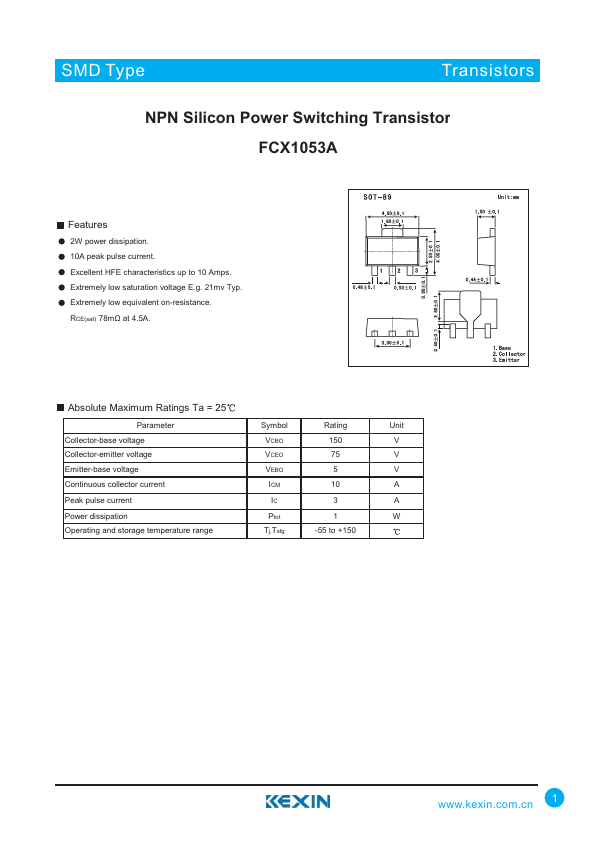

FEATURES
2W power dissipation. 10A peak pulse current. Excellent HFE characteristics up to 10 Amps. Extremely low saturation voltage E.g. 21mv Typ. Extremely low equivalent on-resistance. RCE(sat) 78mÙ at 4.5A.ABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Continuous collector current Symbol Rating Unit VCBO 150 V VCEO 75 V VEBO 5 V ICM 10 A Peak pulse current Power dissipation Operating and storage temperature range IC 3 A Ptot 1 W Tj,Tstg -55 to +150 1 SMD TypeELECTRICAL CHARACTERISTICS

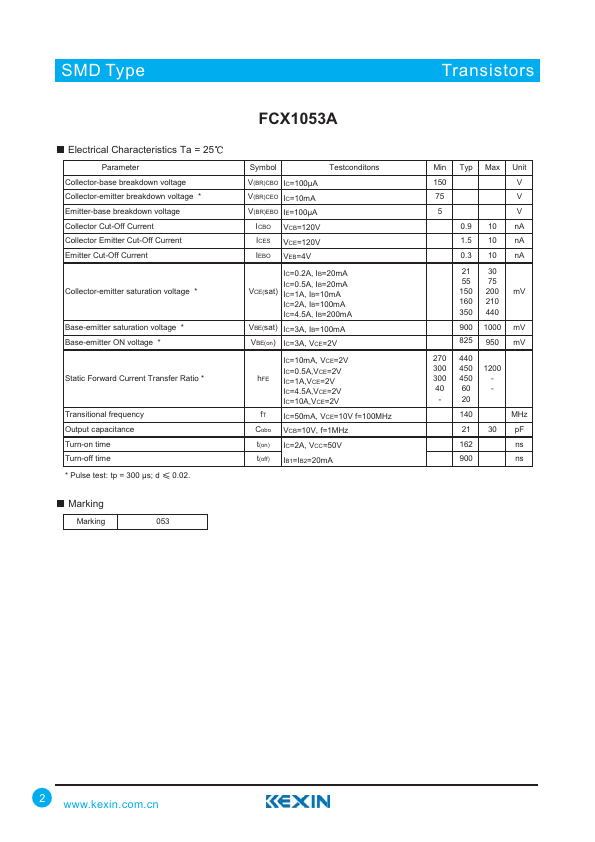

Ta = 25 Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage * Emitter-base breakdown voltage Collector Cut-Off Current Collector Emitter Cut-Off Current Emitter Cut-Off Current Collector-emitter saturation voltage * Base-emitter saturation voltage * Base-emitter ON voltage * Static Forward Current Transfer Ratio * Transitional frequency Output capacitance Turn-on time Turn-off time * Pulse test: tp = 300 ìs; d 0.02.
