FCX1149A Datasheet PNP Silicon Power Switching Transistor

Manufacturer: Kexin Semiconductor

📥 Download Datasheet

Overview

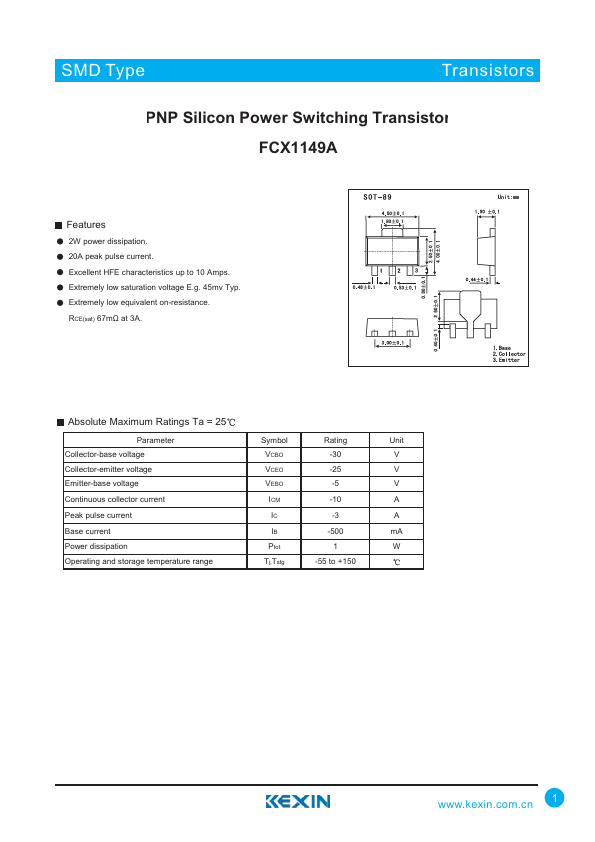

SMD Type Transistors PNP Silicon Power Switching Transistor FCX1149A.

Key Features

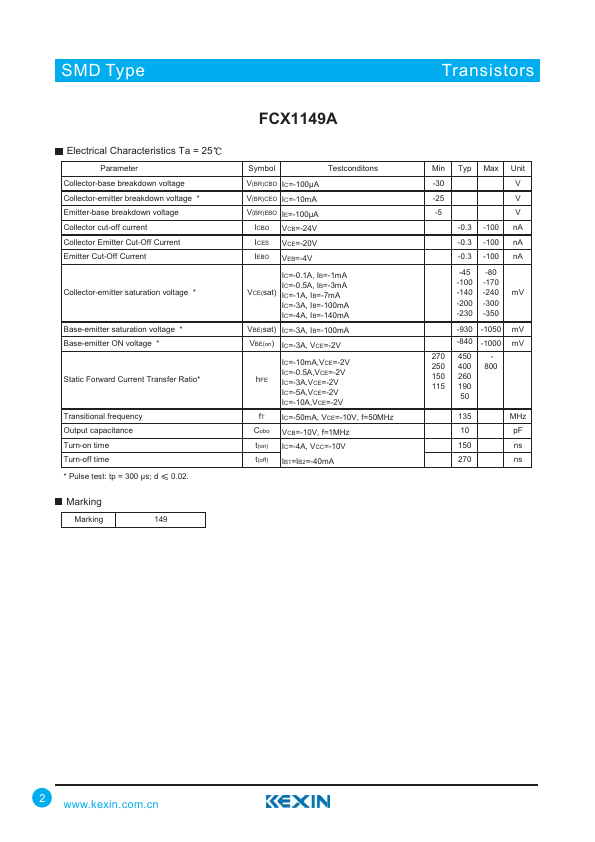

  • 2W power dissipation. 20A peak pulse current. Excellent HFE characteristics up to 10 Amps. Extremely low saturation voltage E. g. 45mv Typ. Extremely low equivalent on-resistance. RCE(sat) 67mÙ at 3A. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Continuous collector current Peak pulse current Symbol Rating Unit VCBO -30 V VCEO -25 V VEBO -5 V ICM -10 A IC -3 A Base current Power dissipation Operating and stor.
