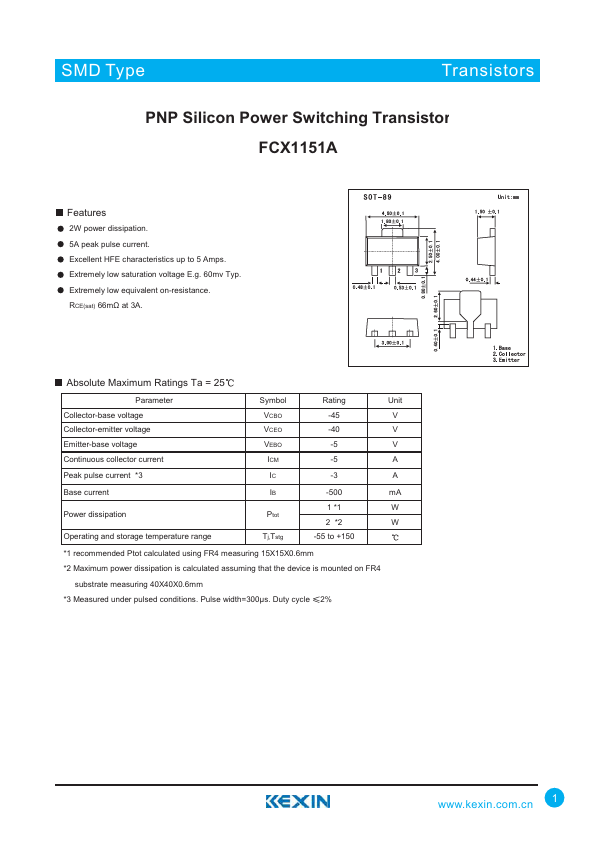

FCX1151A
Features
2W power dissipation. 5A peak pulse current. Excellent HFE characteristics up to 5 Amps. Extremely low saturation voltage E.g. 60mv Typ. Extremely low equivalent on-resistance. RCE(sat) 66mÙ at 3A.
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Continuous collector current
Symbol
Rating
Unit
VCBO
-45
VCEO
-40
VEBO
-5
-5
Peak pulse current
- 3
-3
Base current Power dissipation Operating and storage temperature range
-500 m A
- 1
Ptot
- 2
Tj,Tstg
-55 to +150
- 1 remended Ptot calculated using FR4 measuring 15X15X0.6mm
- 2 Maximum power dissipation is calculated assuming that the device is mounted on FR4 substrate measuring 40X40X0.6mm
- 3 Measured under pulsed conditions. Pulse width=300ìs. Duty cycle 2%
