FCX589 Datasheet Power High Performance Transistor

Manufacturer: Kexin Semiconductor

Datasheet Details

Part number	FCX589
Manufacturer	Kexin Semiconductor
File Size	32.06 KB
Description	Power High Performance Transistor
Download	FCX589 Download (PDF)

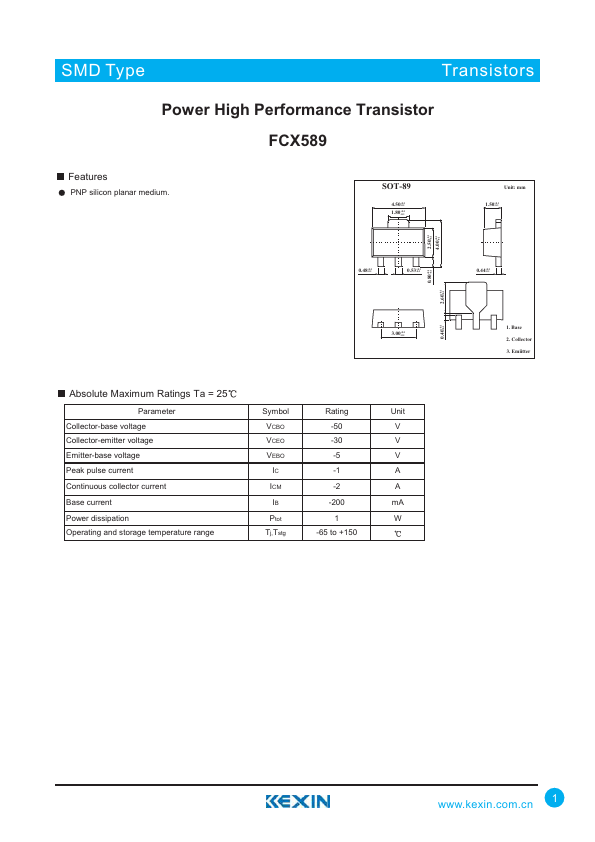

SMD Type Transistors Power High Performance Transistor FCX589.

PNP silicon planar medium. SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 Unit: mm 1.50+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 0.48+0.1 -0.1 0.53+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.40 -0.1 3.00+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak pulse current Continuous collector current Symbol Rating Unit VCBO -50 V VCEO -30 V VEBO -5 V IC -1 A ICM -2 A Base current Power dissip.
