FCX617 Datasheet PDF

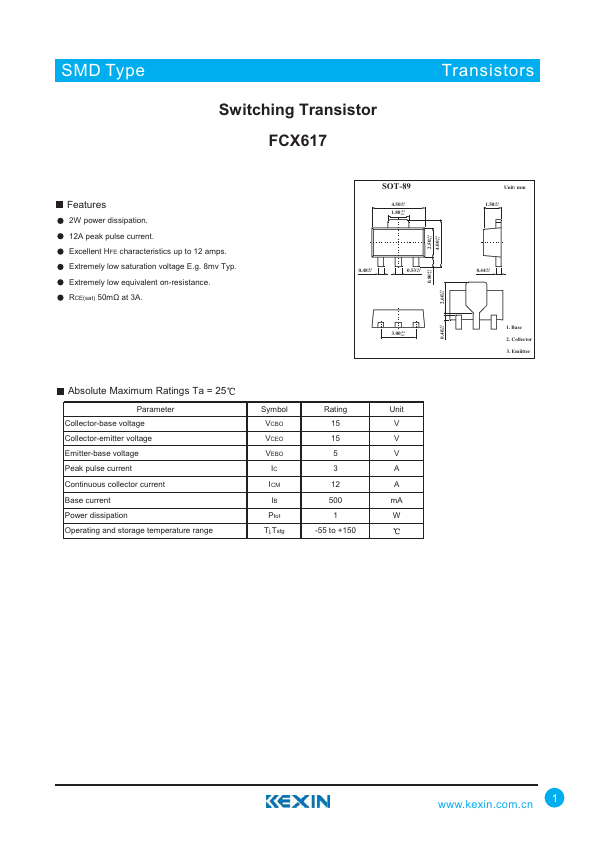

FEATURES

2W power dissipation. 12A peak pulse current. Excellent HFE characteristics up to 12 amps. Extremely low saturation voltage E.g. 8mv Typ. Extremely low equivalent on-resistance. RCE(sat) 50mÙ at 3A. SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 0.48+0.1 -0.1 0.53+0.1 -0.1 3.00+0.1 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak pulse current Continuous collector current Symbol Rating Unit VCBO 15 V VCEO 15 V VEBO 5 V IC 3 A ICM 12 A Base current Power dissipation Operating and storage temperature range IB 500 mA Ptot 1 W Tj,Tstg -55 to +150 +0.1 0.80 -0.1 +0.1 2.60 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 +0.1 0.40 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 1. Base 2. Collector 3. Emiitter 1 SMD Type

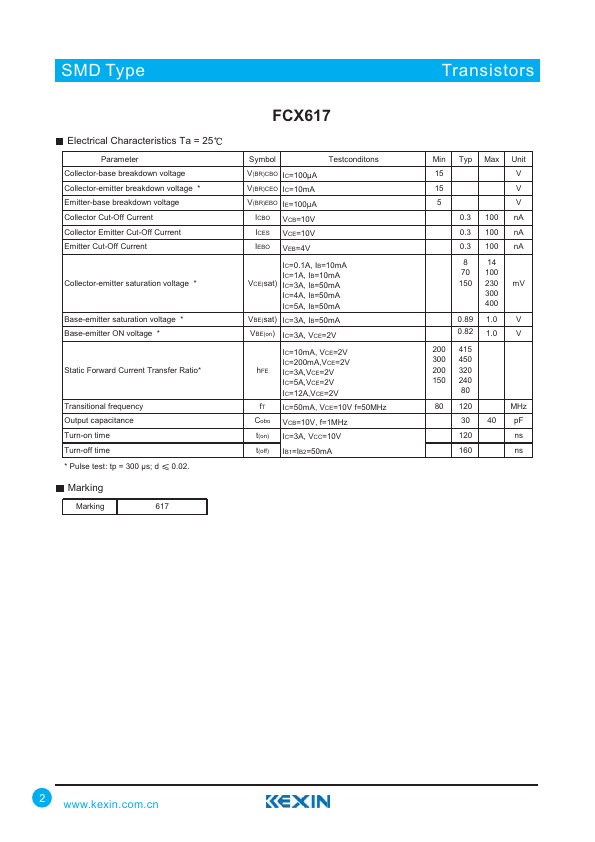

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage * Emitter-base breakdown voltage Collector Cut-Off Current Collector Emitter Cut-Off Current Emitter Cut-Off C...
