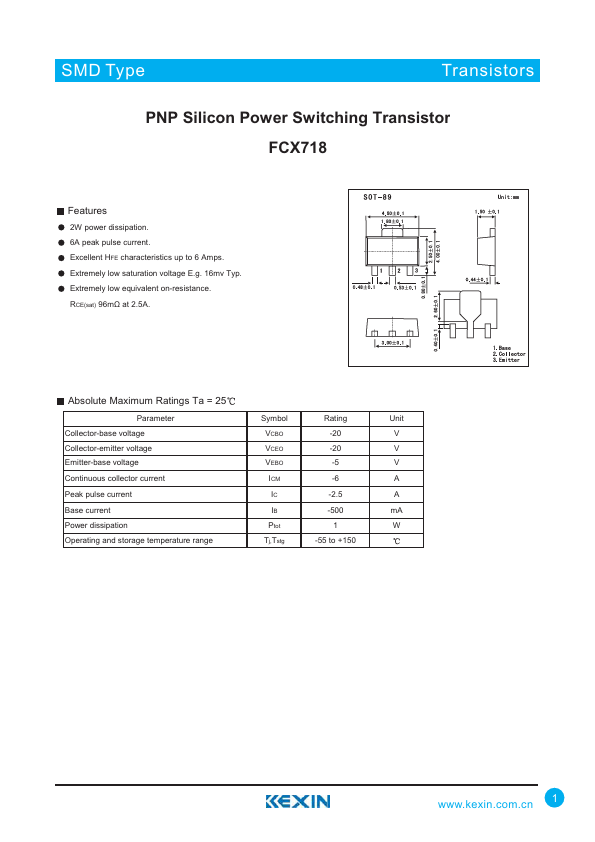

FCX718
Features
2W power dissipation. 6A peak pulse current. Excellent HFE characteristics up to 6 Amps. Extremely low saturation voltage E.g. 16mv Typ. Extremely low equivalent on-resistance. RCE(sat) 96mÙ at 2.5A.
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Continuous collector current
Symbol
Rating
Unit
VCBO
-20
VCEO
-20
VEBO
-5
-6
Peak pulse current
-2.5
Base current Power dissipation Operating and storage temperature range
-500 m A
Ptot
Tj,Tstg
-55 to +150
.kexin..cn 1
SMD Type
Transistors

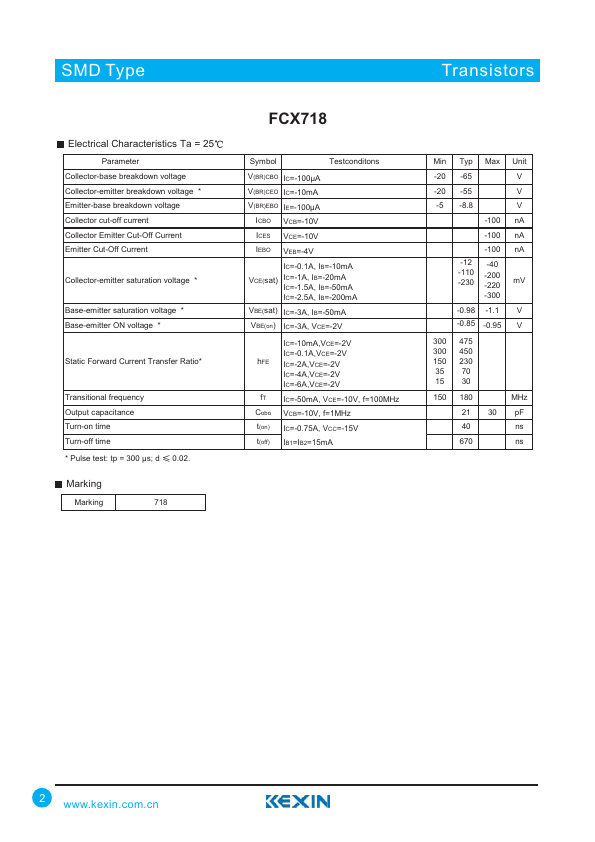

Electrical Characteristics Ta = 25
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage
- Emitter-base breakdown voltage Collector cut-off current Collector Emitter Cut-Off Current Emitter Cut-Off Current
Collector-emitter saturation voltage
- Base-emitter saturation voltage
- Base-emitter ON voltage
- Static Forward Current Transfer Ratio-...
