Kexin Electronics FMA1A
Complex Digital Transistors
| Part No. | FMA1A |
|---|---|
| Datasheet | FMA1A Download |
| Manufacturer | Kexin Electronics |
| Description | Complex Digital Transistors |
| Buy | Stock & Price |

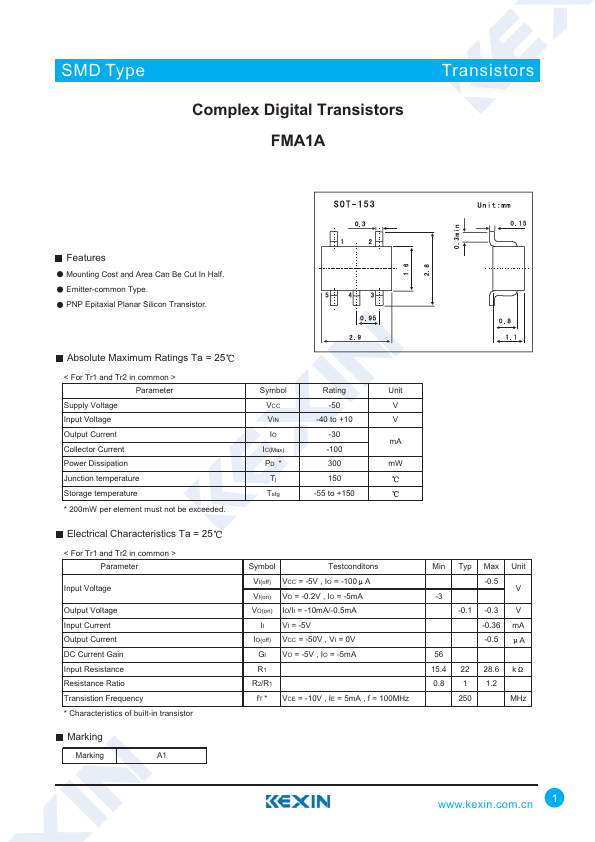

FEATURES
Mounting Cost and Area Can Be Cut In Half. Emitter-common Type. PNP Epitaxial Planar Silicon Transistor.ABSOLUTE MAXIMUM RATINGS
Ta = 25 < For Tr1 and Tr2 in common > Parameter Supply Voltage Input Voltage Output Current Collector Current Power Dissipation Junction temperature Storage temperature * 200mW per element must not be exceeded.ELECTRICAL CHARACTERISTICS
Ta = 25 < For Tr1 and Tr2 in common > Parameter Input Voltage Output Voltage Input Current Output Current DC Current Gain Input Resistance Resistance Ratio Transistion Frequency * Characteristics of built-in transistor Marking Marking A1 Symbol Rating Unit VCC -50 V VIN -40 to +10 V IO -30 mA IC(Max) -100 PD * 300 mW Tj 150 Tstg -55 to +150 Symbol Testconditons VI(off) VCC = -5V , IO = -100 A VI(on) VO = -0.2V , IO = -5mA VO(on) IO/II = -10mA/-0.5mA II VI = -5V IO(off) VCC = -50V , VI = 0V GI VO = -5V , IO = -5mA R1 R2/R1 fT * VCE = -10V , IE = 5mA , f = 100MHz Min Typ Max Unit -0.5 V -3 -0.1 -0.3 V -0.36 mA -0.5 A...
