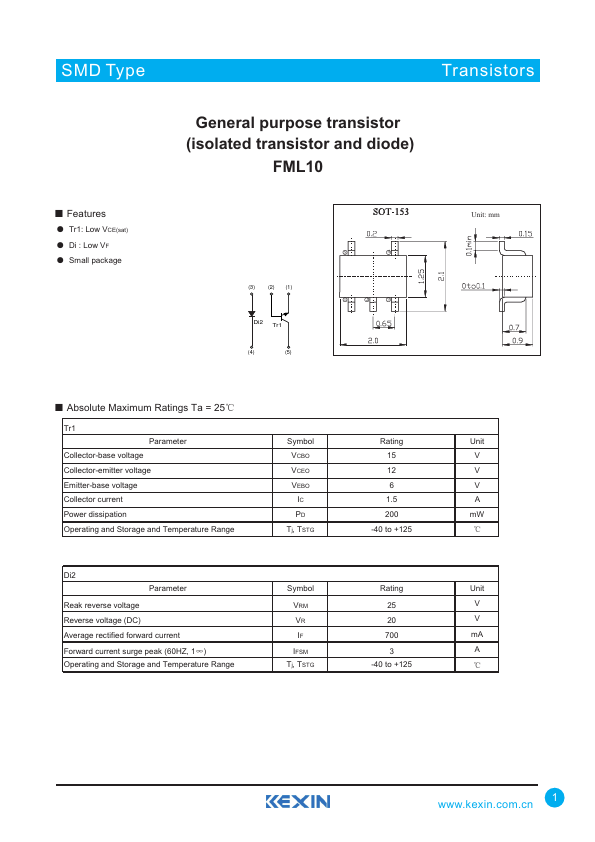

Kexin Electronics FML10
General purpose transistor
| Part No. | FML10 |
|---|---|
| Datasheet | FML10 Download |
| Manufacturer | Kexin Electronics |
| Description | General purpose transistor |
| Buy | Stock & Price |
FEATURES
● Tr1: Low VCE(sat)● Di : Low VF
● Small package General purpose transistor (isolated transistor and diode) FML10 (3) (2) (1) Di2 Tr1 (4) (5) 5 4 1 2 3 Unit: mm
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Tr1 Parameter Symbol Rating Unit Collector-base voltage VCBO 15 V Collector-emitter voltage VCEO 12 V Emitter-base voltage VEBO 6 V Collector current IC 1.5 A Power dissipation PD 200 mW Operating and Storage and Temperature Range Tj, TSTG -40 to +125 ℃ Di2 Parameter Symbol Rating Unit Reak reverse voltage VRM 25 V Reverse voltage (DC) VR 20 V Average rectified forward current IF 700 mA Forward current surge peak (60HZ, 1∞) IFSM 3 A Operating and Storage and Temperature Range Tj, TSTG -40 to +125 ℃ 1 SMD Type Transistors FML10●

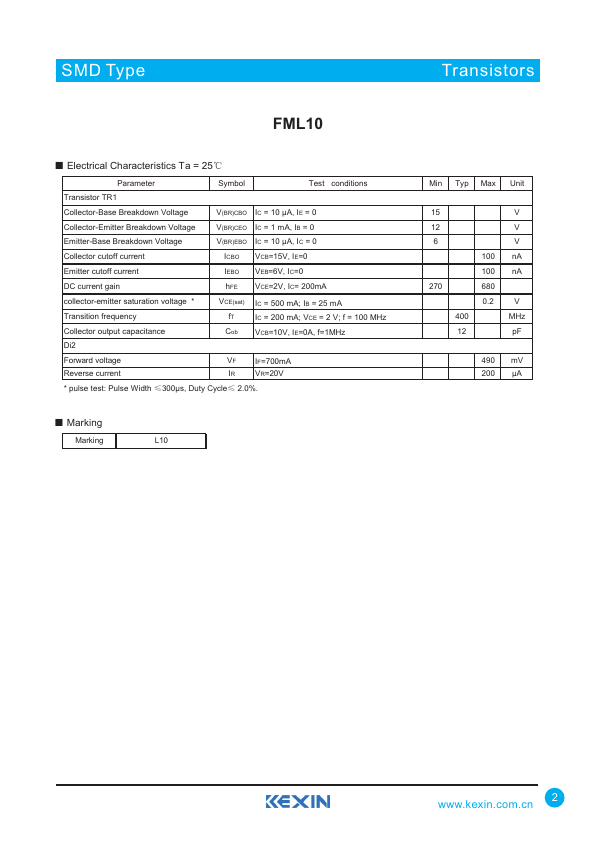

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Symbol Test conditions Transistor TR1 Collector-Base Breakdown Voltage V(BR)CBO IC = 10 μA, IE = 0 Collector-Emitter Breakdown Voltage V(BR)CEO IC = 1 mA, IB = 0 Emitter-Base Breakdown Voltage V(BR)EBO IC = 10 μA...
