Kexin Electronics FML9
General purpose transistor
| Part No. | FML9 |
|---|---|
| Datasheet | FML9 Download |
| Manufacturer | Kexin Electronics |
| Description | General purpose transistor |
| Buy | Stock & Price |

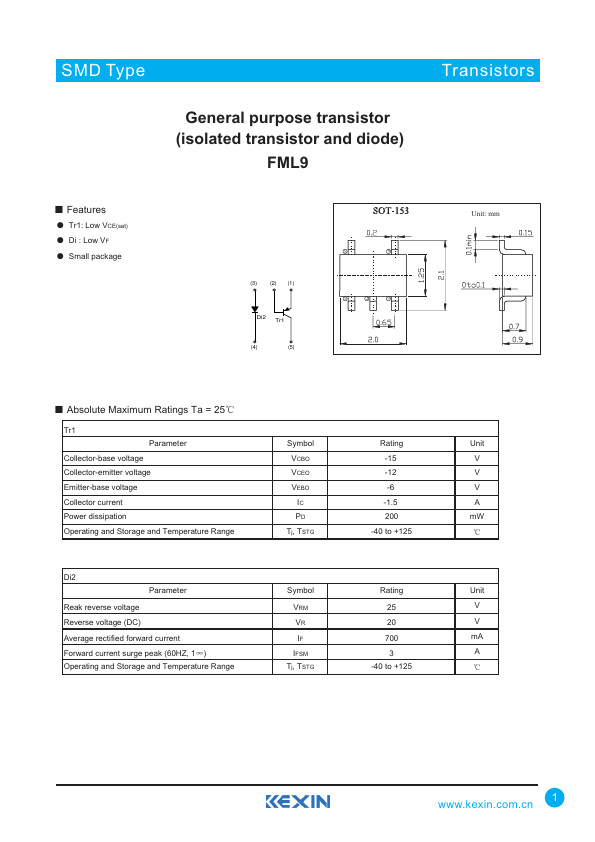

FEATURES
● Tr1: Low VCE(sat)● Di : Low VF
● Small package (3) (2) (1) Di2 Tr1 (4) (5) 5 4 1 2 3 Unit: mm
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Tr1 Parameter Symbol Rating Unit Collector-base voltage VCBO -15 V Collector-emitter voltage VCEO -12 V Emitter-base voltage VEBO -6 V Collector current IC -1.5 A Power dissipation PD 200 mW Operating and Storage and Temperature Range Tj, TSTG -40 to +125 ℃ Di2 Parameter Symbol Rating Unit Reak reverse voltage VRM 25 V Reverse voltage (DC) VR 20 V Average rectified forward current IF 700 mA Forward current surge peak (60HZ, 1∞) IFSM 3 A Operating and Storage and Temperature Range Tj, TSTG -40 to +125 ℃ 1 SMD Type TransistIoCrs FML9●

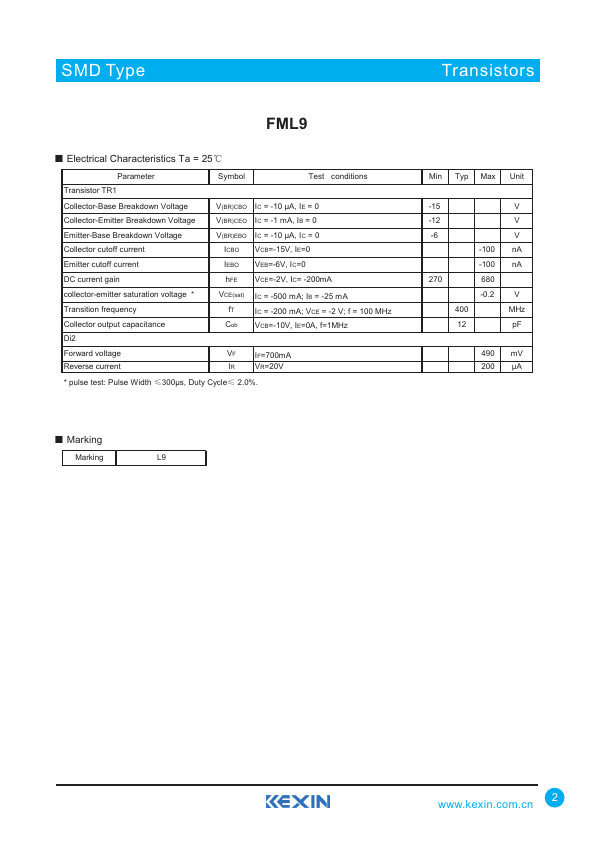

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Symbol Test conditions Transistor TR1 Collector-Base Breakdown Voltage V(BR)CBO IC = -10 μA, IE = 0 Collector-Emitter Breakdown Voltage V(BR)CEO IC = -1 mA, IB = 0 Emitter-Base Breakdown Voltage V(BR)EBO IC = -10 μA, IC = 0 Collector cutoff current ICBO VCB=-15V, IE=0 Emi...
