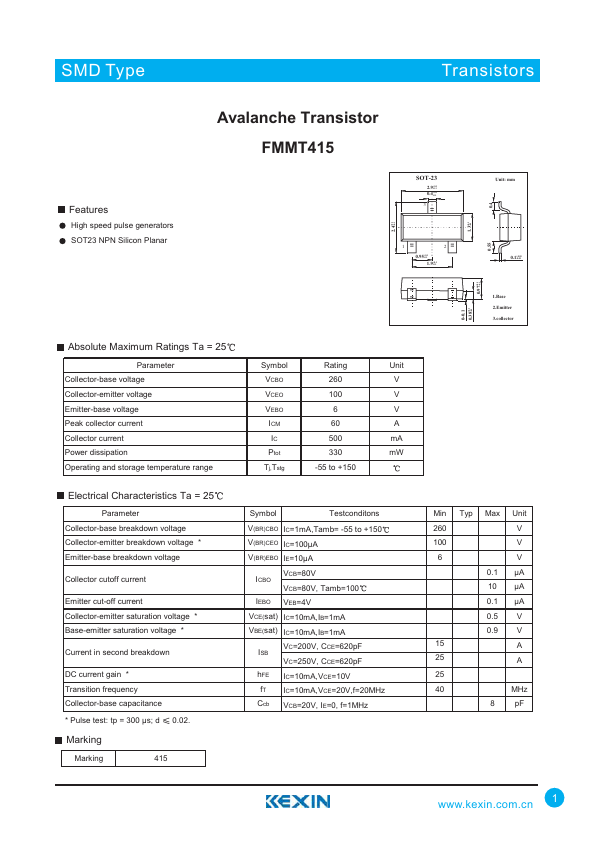

FMMT415 Datasheet PDF

FEATURES

High speed pulse generators SOT23 NPN Silicon Planar Avalanche Transistor FMMT415 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO 260 V VCEO 100 V VEBO 6 V ICM 60 A IC 500 mA Ptot 330 mW Tj,Tstg -55 to +150

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage * Emitter-base breakdown voltage Collector cutoff current Emitter cut-off current Collector-emitter saturation voltage * Base-emitter saturation voltage * Current in second breakdown DC current gain * Transition frequency Collector-base capacitance * Pulse test: tp = 300 ìs; d 0.02. Marking Marking 415 Symbol Testconditons V(BR)CBO IC=1mA...
