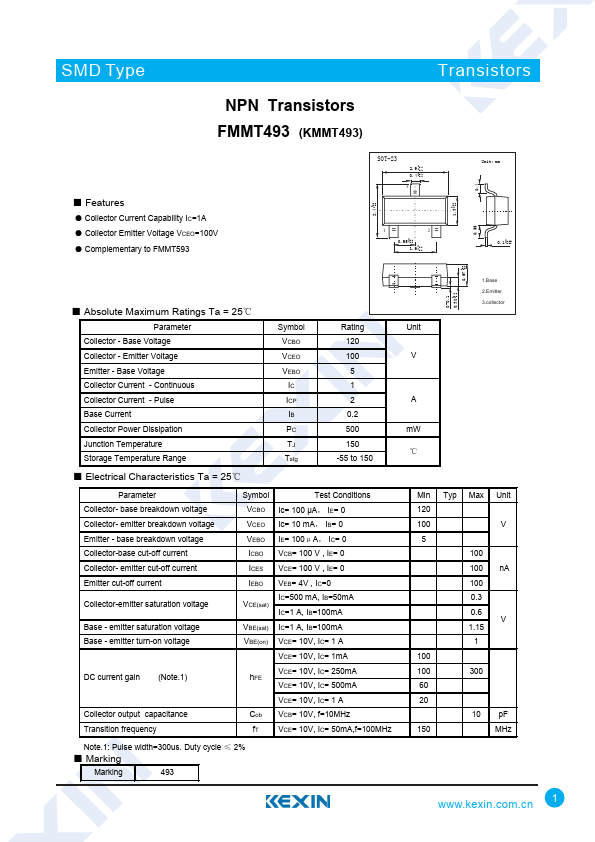

FMMT493
Features
- Collector Current Capability IC=1A
- Collector Emitter Voltage VCEO=100V
- plementary to FMMT593
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1 +0.05
-0.01
+0.1 0.97 -0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC ICP IB PC TJ Tstg
Rating 120 100 5 1 2 0.2 500 150
-55 to 150
- Electrical Characteristics Ta = 25℃
Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter
- base breakdown voltage Collector-base cut-off current Collector- emitter cut-off current Emitter cut-off current Collector-emitter saturation voltage
Base
- emitter saturation voltage Base
- emitter turn-on voltage
DC current gain (Note.1)
Collec...
