FMMT494 Datasheet Medium Power Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors.

Datasheet Details

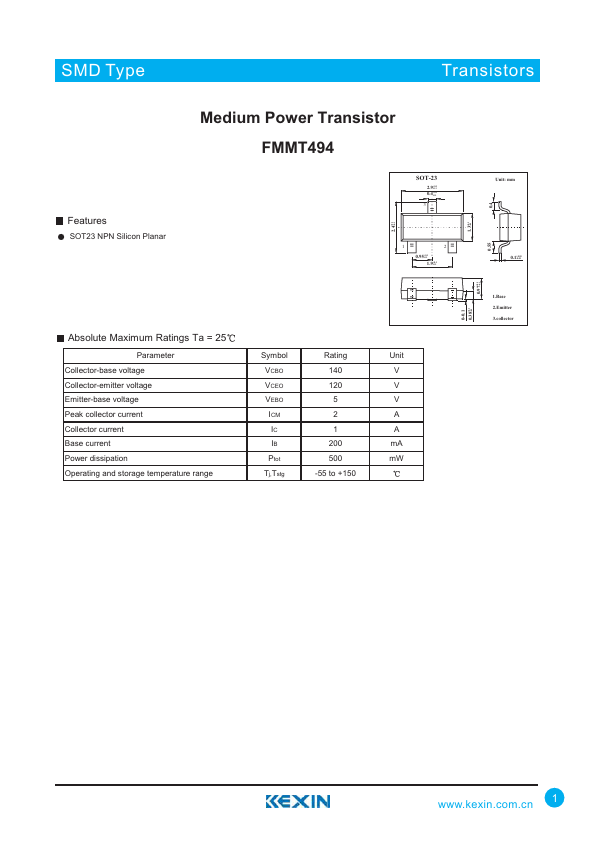

SOT23 NPN Silicon Planar Medium Power Transistor FMMT494 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Base current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO 140 V VCEO 120 V VEBO 5 V ICM 2 A IC 1 A IB 200 mA Ptot 500 mW Tj,Tstg -55 to +15.

Part Number	Description	Manufacturer
FMMT494	120V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR	Diodes
FMMT494	NPN SILICON PLANAR MEDIUM POWER TRANSISTOR	Zetex Semiconductors
FMMT494Q	120V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR	Diodes
