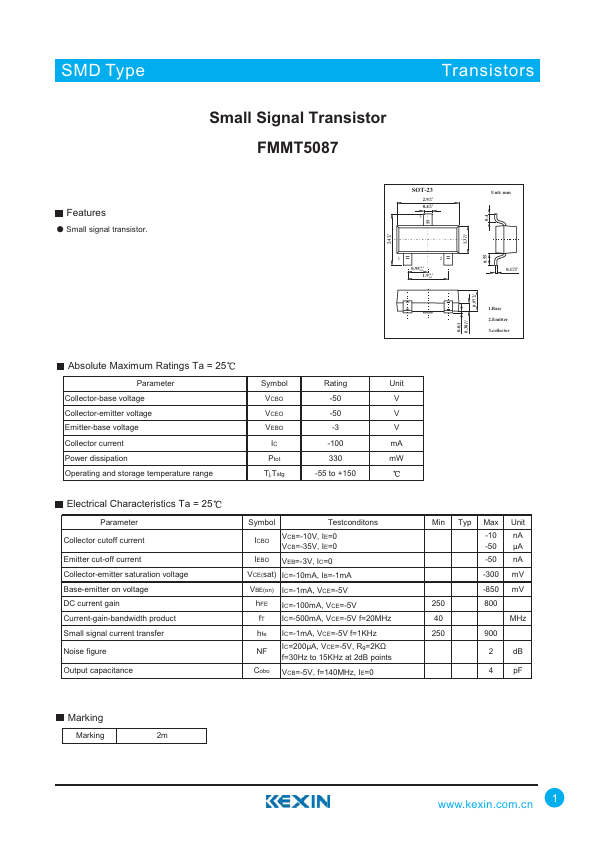

FMMT5087
Features
Small signal transistor.
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Operating and storage temperature range
Symbol
Rating
Unit
VCBO
-50
VCEO
-50
VEBO
-3
-100 m A
Ptot
330 m W
Tj,Tstg
-55 to +150
Electrical Characteristics Ta =...
