FEATURES

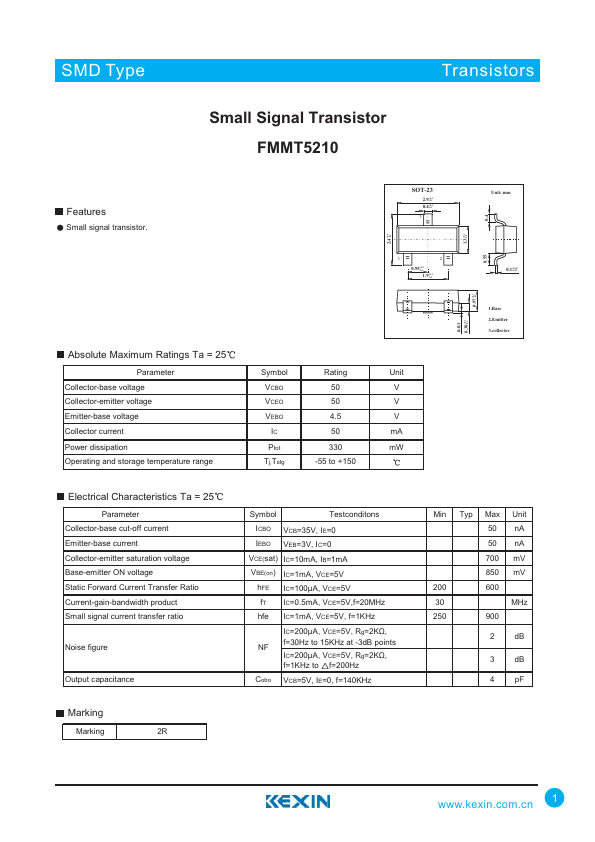

Small signal transistor. +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 ABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO 50 V VCEO 50 V VEBO 4.5 V IC 50 mA Ptot 330 mW Tj,Tstg -55 to +150 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Collector-base cut-off current Emitter-base current Collector-emitter saturation voltage Base-emitter ON voltage Static Forward Current Transfer Ratio Current-gain-bandwidth product Small signal current transfer ratio Noise figure Output capacitance Marking Marking 2R Symbol Testconditons ICBO VCB=35V, IE=0 IEBO VEB=3V, IC=0 VCE(sat) IC=10mA, IB=1mA VBE(on) IC=1mA, VCE=5V hFE IC=100ìA, VCE=5V fT IC=0.5mA, VCE=5V,f=20MHz hfe IC=1mA, VCE=5V, f=1KH...
