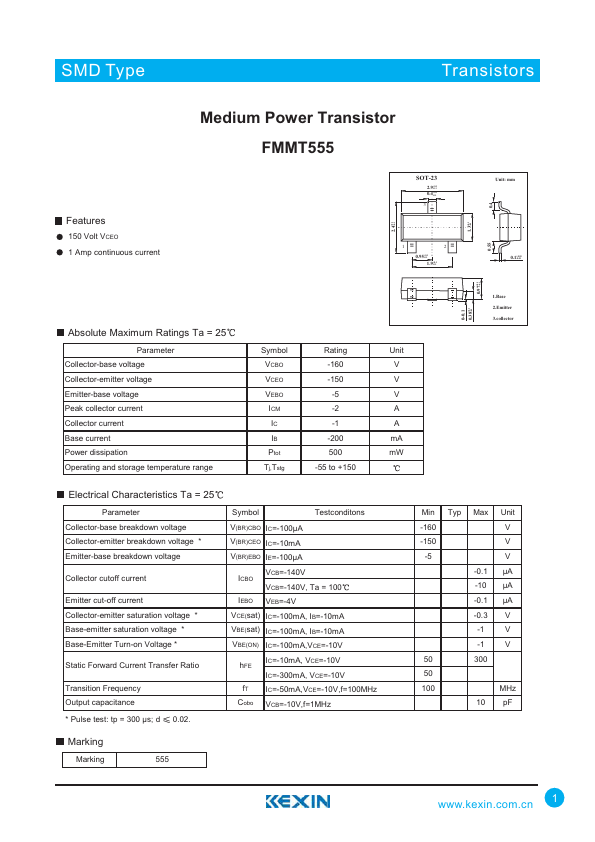

FMMT555
Features
150 Volt VCEO 1 Amp continuous current
Medium Power Transistor
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
+0.1 2.4 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Base current Power dissipation Operating and storage temperature range
Symbol
Rating
Unit
VCBO
-160
VCEO
-150
VEBO
-5
-2
-1
-200 m...
