Kexin Electronics FMMT617TA
NPN Silicon Power Transistor
| Part No. | FMMT617TA |
|---|---|
| Datasheet | FMMT617TA Download |
| Manufacturer | Kexin Electronics |
| Description | NPN Silicon Power Transistor |
| Buy | Stock & Price |
FEATURES
● Power Dissipation: Ptot=625mW● Collector Current: IC=3A +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Pulse Current *1 Power Dissipation at Tamb =25℃*2 Operating and Storage Temperature Range Symbol Rating Unit VCBO 15 V VCEO 15 V VEBO 5 V IC 3 A ICM 12 A Ptot 625 mW Tj:Tstg -55 to +150 ℃ *1. Measured under pulsed conditions. Pulse width=300ms. Duty cycle ≤2% *2.Maximum power dissipation is calculated assuming that the device is mounted on a ceramic substrate measuring 15x15x0.6mm 1 SMD Type FMMT617TA●

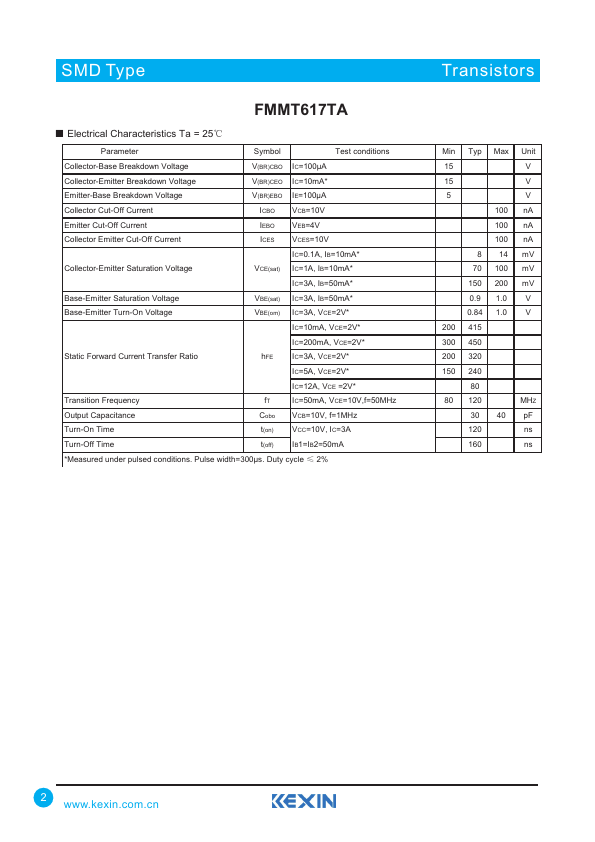

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Emitter Cut...
