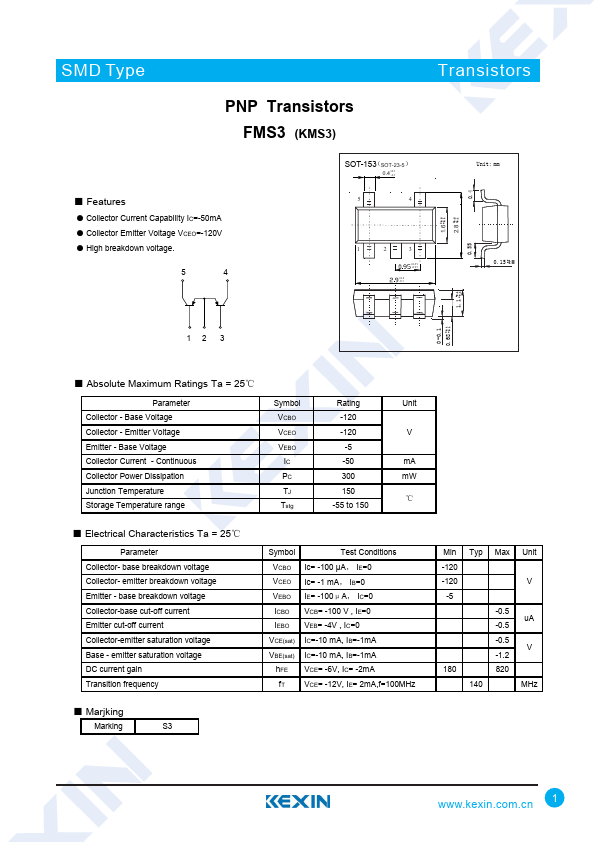

FMS3 Datasheet PNP Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors PNP Transistors FMS3 (KMS3) ■.

Datasheet Details

s.
Collector Current Capability IC=-50mA.
Collector Emitter Voltage VCEO=-120V.
High breakdown voltage. 5 4 SOT-153 ( SOT-23-5 ) 0.4+0.1 -0.1 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 0-0.1 +0.1 0.68 -0.1 12 3.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junct.
