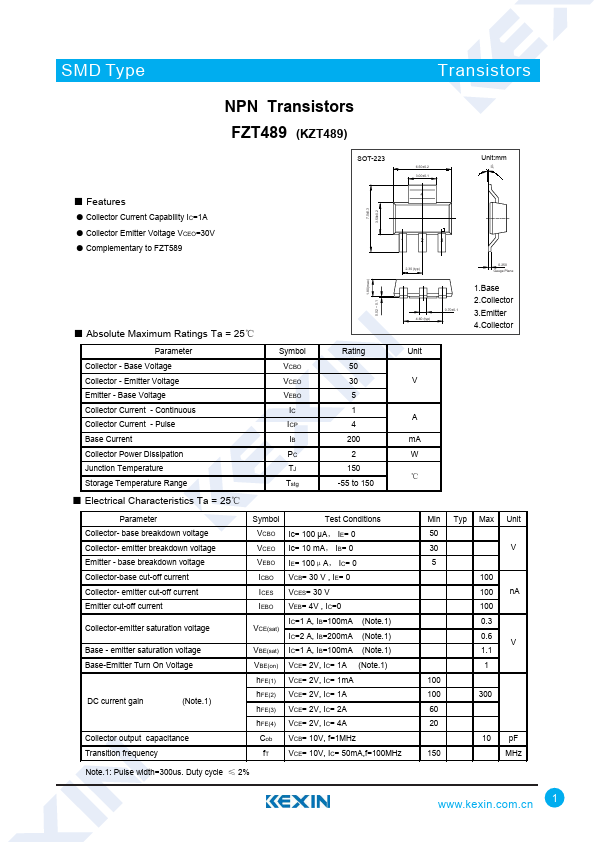

FZT489 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN Transistors FZT489 (KZT489) SOT-223 6.50±0.2 3.00±0.

📥 Download Datasheet

Key Features

  • Collector Current Capability IC=1A.
  • Collector Emitter Voltage VCEO=30V.
  • Complementary to FZT589 7.0±0.3 3.50±0.2 4 1 2 3 2.30 (typ) 0.250 Gauge Plane 1.80 (max) 0.02 ~ 0.1.
  • Absolute Maximum Ratings Ta = 25℃ 4.60 (typ) 0.70±0.1 1.Base 2.Collector 3.Emitter 4.Collector Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Base Current Collector Power Dissipation Junction Tempe.
