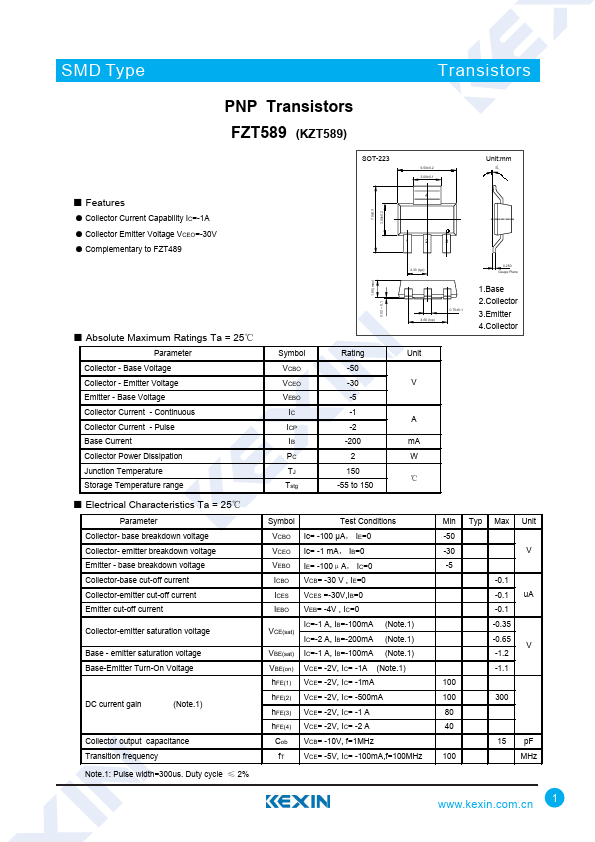

FZT589 Datasheet PNP Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors PNP Transistors FZT589 (KZT589) SOT-223 6.50±0.2 3.00±0.

Datasheet Details

Collector Current Capability IC=-1A.
Collector Emitter Voltage VCEO=-30V.
Complementary to FZT489.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Base Current Collector Power Dissipation Junction Temperature Storage Temperature range.
Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown.
