FZT849 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

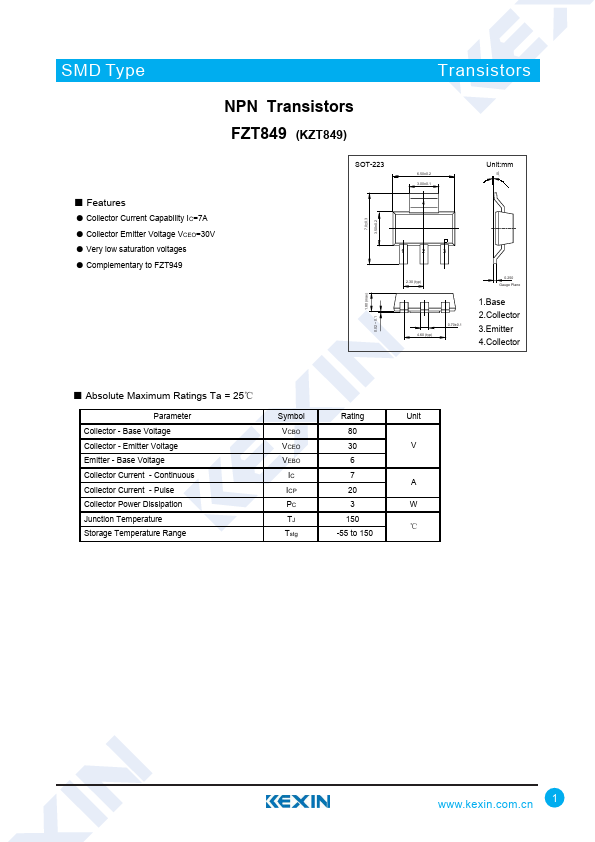

Overview: SMD Type Transistors NPN Transistors FZT849 (KZT849) ■.

Datasheet Details

s.
Collector Current Capability IC=7A.
Collector Emitter Voltage VCEO=30V.
Very low saturation voltages.
Complementary to FZT949 SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1.80 (max) 0.02 ~ 0.1 1 2 3 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Base 2.Collector 3.Emitter 4.Collector.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Colle.
