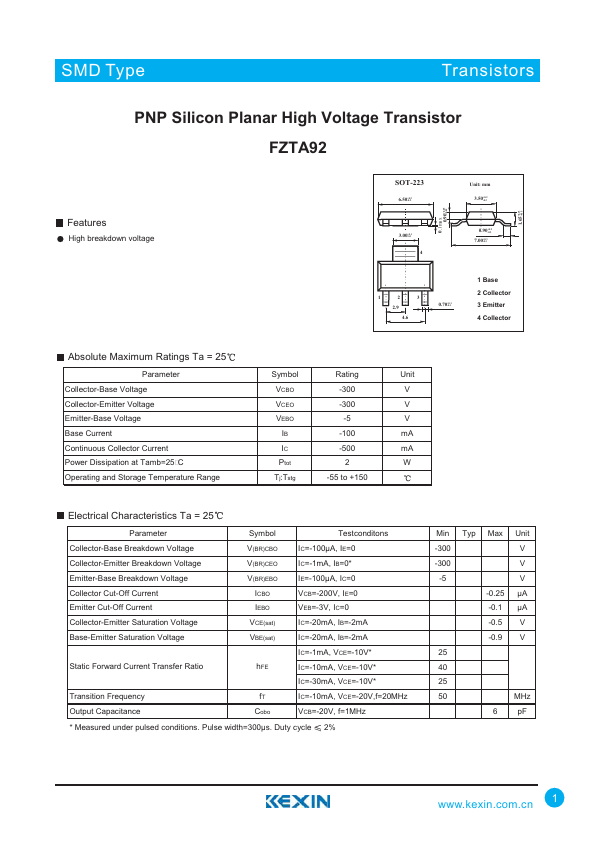

FZTA92 Datasheet PNP Silicon Planar High Voltage Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors 0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.15 PNP Silicon Planar High Voltage Transistor.

Datasheet Details

Part number	FZTA92
Manufacturer	Kexin Semiconductor
File Size	31.25 KB
Description	PNP Silicon Planar High Voltage Transistor
Datasheet	FZTA92-Kexin.pdf

High breakdown voltage SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.2 3.00+0.1 -0.1 4 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 Base 2 Collector 3 Emitter 4 Collector Absolute Maximum Ratings Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Base Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range Symbol Rating Unit VCBO -300 V VCEO -300 V VEBO -5 V IB -100 mA I.
