GSOT08

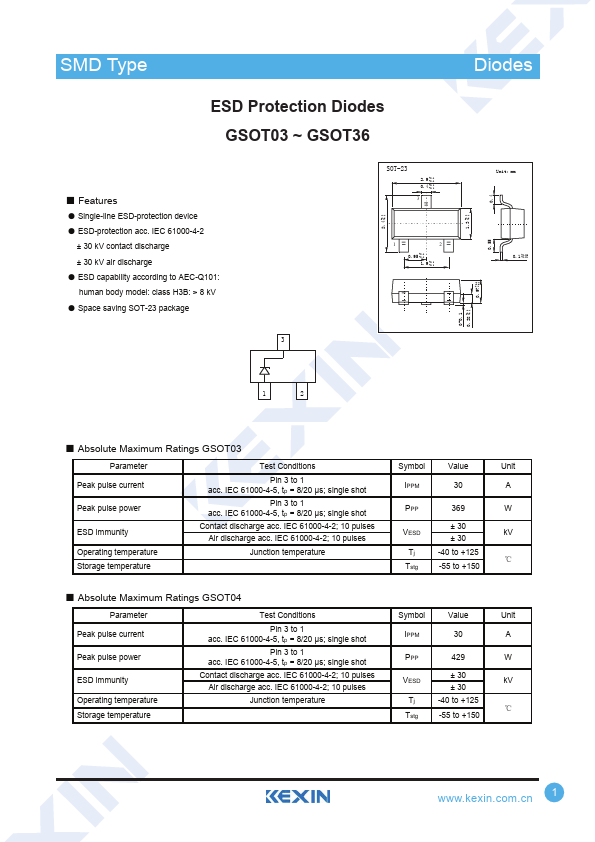

Features
- Single-line ESD-protection device
- ESD-protection acc. IEC 61000-4-2
± 30 k V contact discharge ± 30 k V air discharge
- ESD capability according to AEC-Q101: human body model: class H3B: > 8 k V
- Space saving SOT-23 package
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1 +0.05
-0.01
+0.1 0.97 -0.1
0-0.1 +0.1 0.38
-0.1

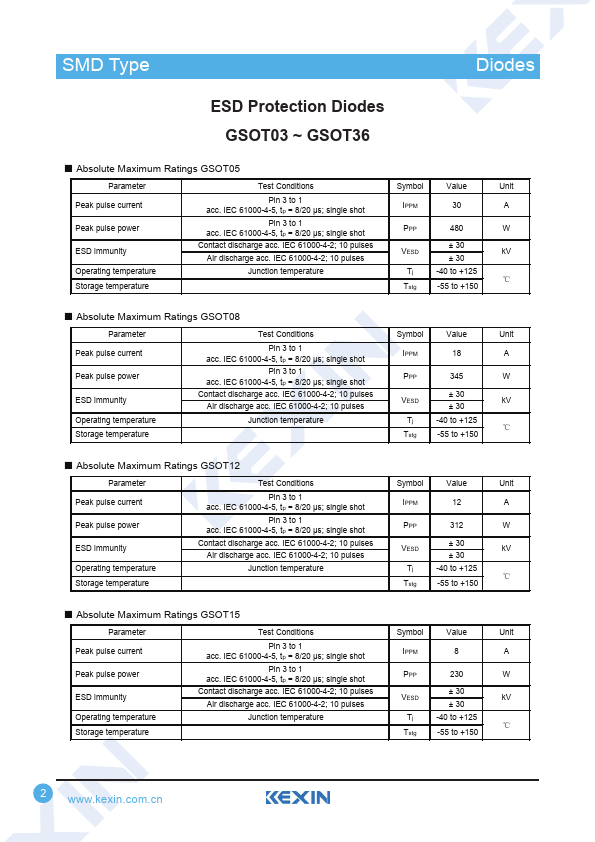

- Absolute Maximum Ratings GSOT03
Parameter Peak pulse current
Peak pulse power
ESD immunity Operating temperature Storage temperature
Test Conditions
Pin 3 to 1 acc. IEC 61000-4-5, tp = 8/20 μs; single shot
Pin 3 to 1 acc. IEC 61000-4-5, tp = 8/20 μs; single shot Contact discharge acc. IEC 61000-4-2; 10 pulses Air discharge acc. IEC 61000-4-2; 10 pulses
Junction temperature
Symbol
Value
Unit
IPPM
VESD...
