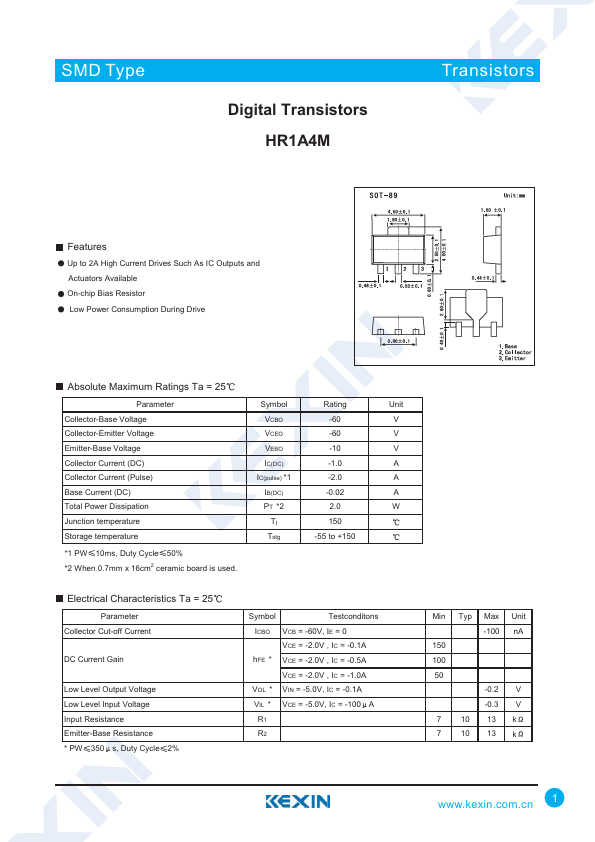

Kexin Electronics HR1A4M
Digital Transistors
| Part No. | HR1A4M |
|---|---|
| Datasheet | HR1A4M Download |
| Manufacturer | Kexin Electronics |
| Description | Digital Transistors |
| Buy | Stock & Price |
FEATURES
Up to 2A High Current Drives Such As IC Outputs and Actuators Available On-chip Bias Resistor Low Power Consumption During DriveABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Base Current (DC) Total Power Dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -60 V VCEO -60 V VEBO -10 V IC(DC) -1.0 A IC(pulse) *1 -2.0 A IB(DC) -0.02 A PT *2 2.0 W Tj 150 Tstg -55 to +150 *1 PW 10ms, Duty Cycle 50% *2 When 0.7mm x 16cm2 ceramic board is used.ELECTRICAL CHARACTERISTICS

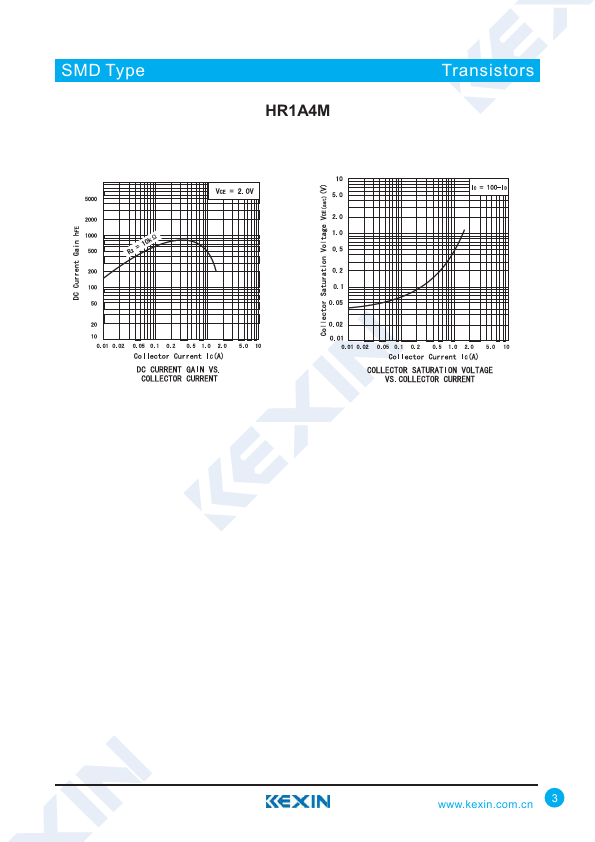

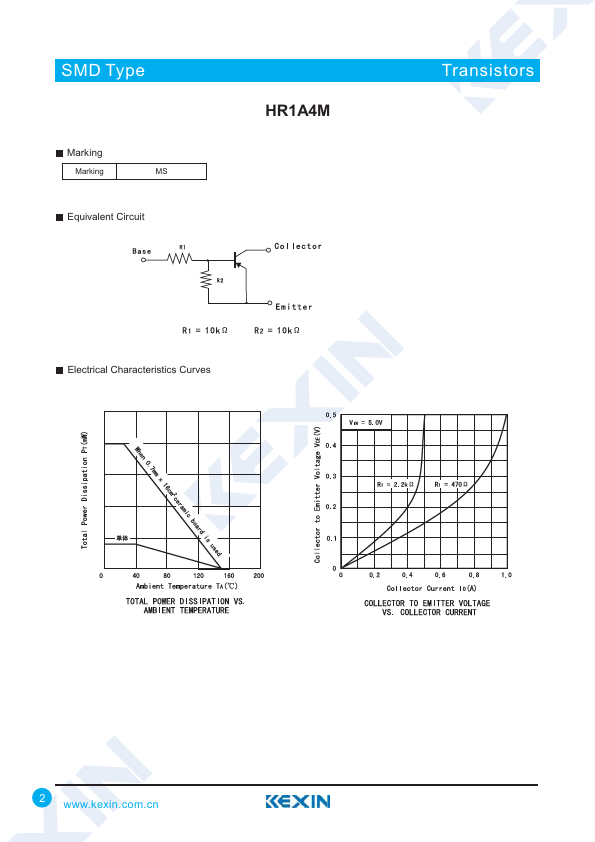

Ta = 25 Parameter Collector Cut-off Current DC Current Gain Low Level Output Voltage Low Level Input Voltage Input Resistance Emitter-Base Resistance * PW 350 s, Duty Cycle 2% Symbol Testconditons ICBO VCB = -60V, IE = 0 VCE = -2.0V , IC = -0.1A hFE * VCE = -2.0V , IC = -0.5A VCE = -2.0V , IC = -1.0A VOL * VIN = -5.0V, IC = -0.1A VIL * VCE = -5.0V, IC = -100 A R1 R2 Min Typ Max...
