Kexin Electronics HSMP-3820
Surface Mount PIN Diodes
| Part No. | HSMP-3820 |
|---|---|
| Datasheet | HSMP-3820 Download |
| Manufacturer | Kexin Electronics |
| Description | Surface Mount PIN Diodes |
| Buy | Stock & Price |

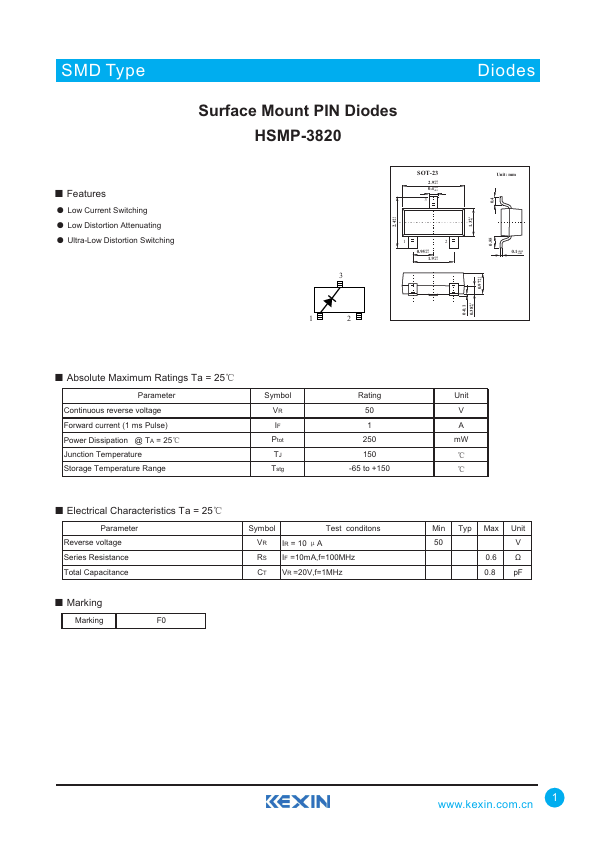

FEATURES
● Low Current Switching● Low Distortion Attenuating
● Ultra-Low Distortion Switching SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 Unit: mm 0.4 +0.1 1.3 -0.1 +0.1 2.4 -0.1 0.55 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 3 0.1+0.05 -0.01 +0.1 0.97 -0.1 0-0.1 +0.1 0.38 -0.1 1 2
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Continuous reverse voltage Forward current (1 ms Pulse) Power Dissipation @ TA = 25℃ Junction Temperature Storage Temperature Range Symbol VR IF Ptot TJ Tstg Rating 50 1 250 150 -65 to +150●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Reverse voltage Series Resistance Total Capacitance Symbol Test conditons VR IR = 10 μA RS IF =10mA,f=100MHz CT VR =20V,f=1MHz● Marking Marking F0 Unit V A mW ℃ ℃ Min Typ Max Unit 50 V 0.6 Ω 0.8 pF 1 SMD Type Diodes HSMP-3820

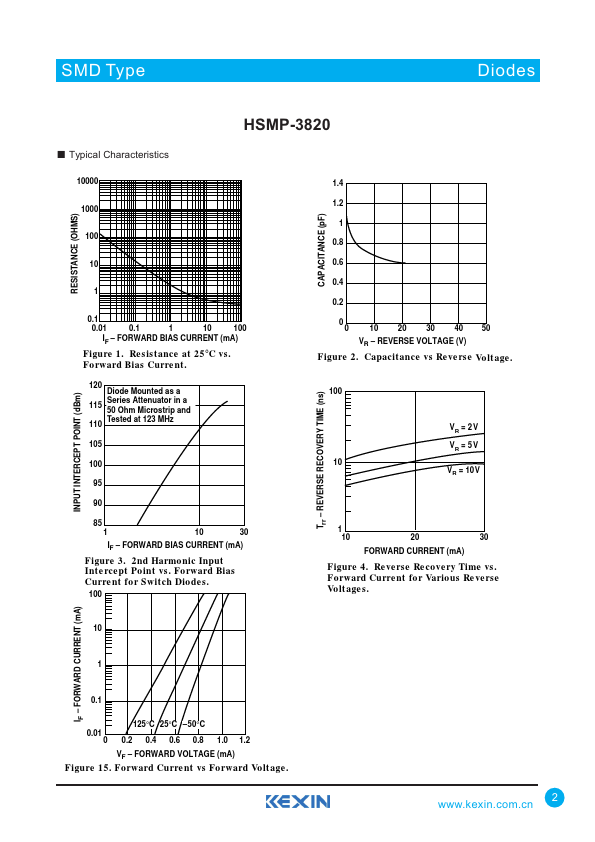

● Typical Characteristics 10000 1000 RESISTANCE (OHMS) 100 10 1 INPUT INTERCEPT POINT (dBm) 0.1 0.01 0.1 1 10 100 IF – FORWARD BIAS CURRENT (mA) Figure 1. Resistance at 25°C vs. Forward Bias Current. 120 Diode Mounted as a 115 Series Attenuator in a 50 Ohm Microstrip and Tested at 123 MHz 110 105 100 95 90 85 1 10 30 IF – FORWARD BIAS CURRENT (mA) Figure 3.
